Chain Turning Device

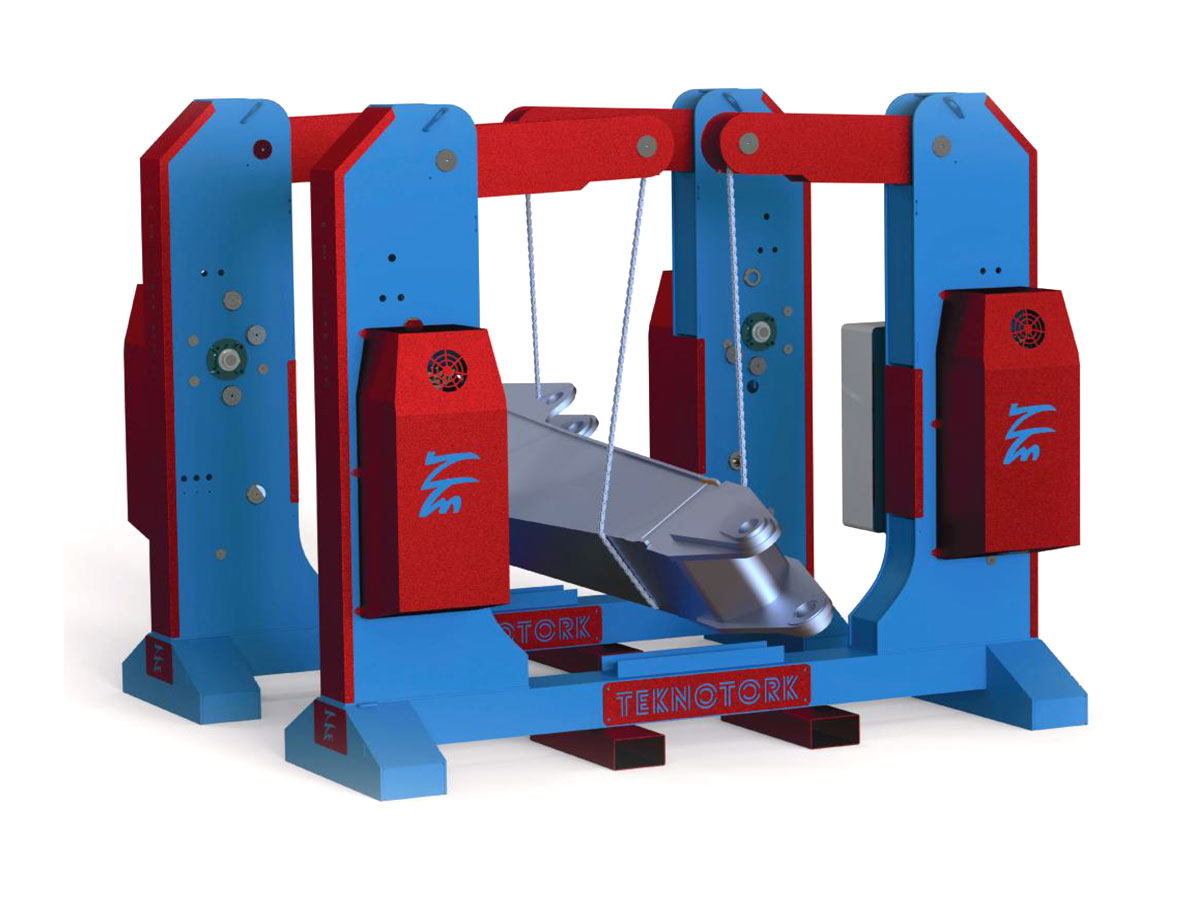

The chain type turning device is specially designed to ensure fast and safe rotation of large and heavy loads such as H, I, T and W beams, pipes, welded structures, and steel constructions. This innovative solution guarantees maximum safety without the need for crane usage.
The chain type turning device consists of two turners, each performing lifting and rotating functions. These functions can be controlled synchronously or independently. This type of turning device is not only suitable for H, I, T and W beams but also stands out as an excellent rotating solution for steel structures, pipes, crane beams, mobile crane booms, steel poles, and many other applications. The integration of vertically opening and closing arms allows easy loading with a crane.
The turning device can be equipped with rollers under the legs or with a sub-chassis option. Smaller models can be easily transported by forklift or pallet truck, and the distance between the turning device legs can be conveniently adjusted.
STANDARD FEATURES
• 5 m wired control pendant.
• AC drive system for rotating the rollers.
• Heavy-duty drive chains and gears.
• Brake motors with fan cooling.
OPTIONAL FEATURES
• Dual foot pedal for right-left rotation.
• Wireless remote control.
• Manual or motorized bogie sub-chassis for use with floor rails.

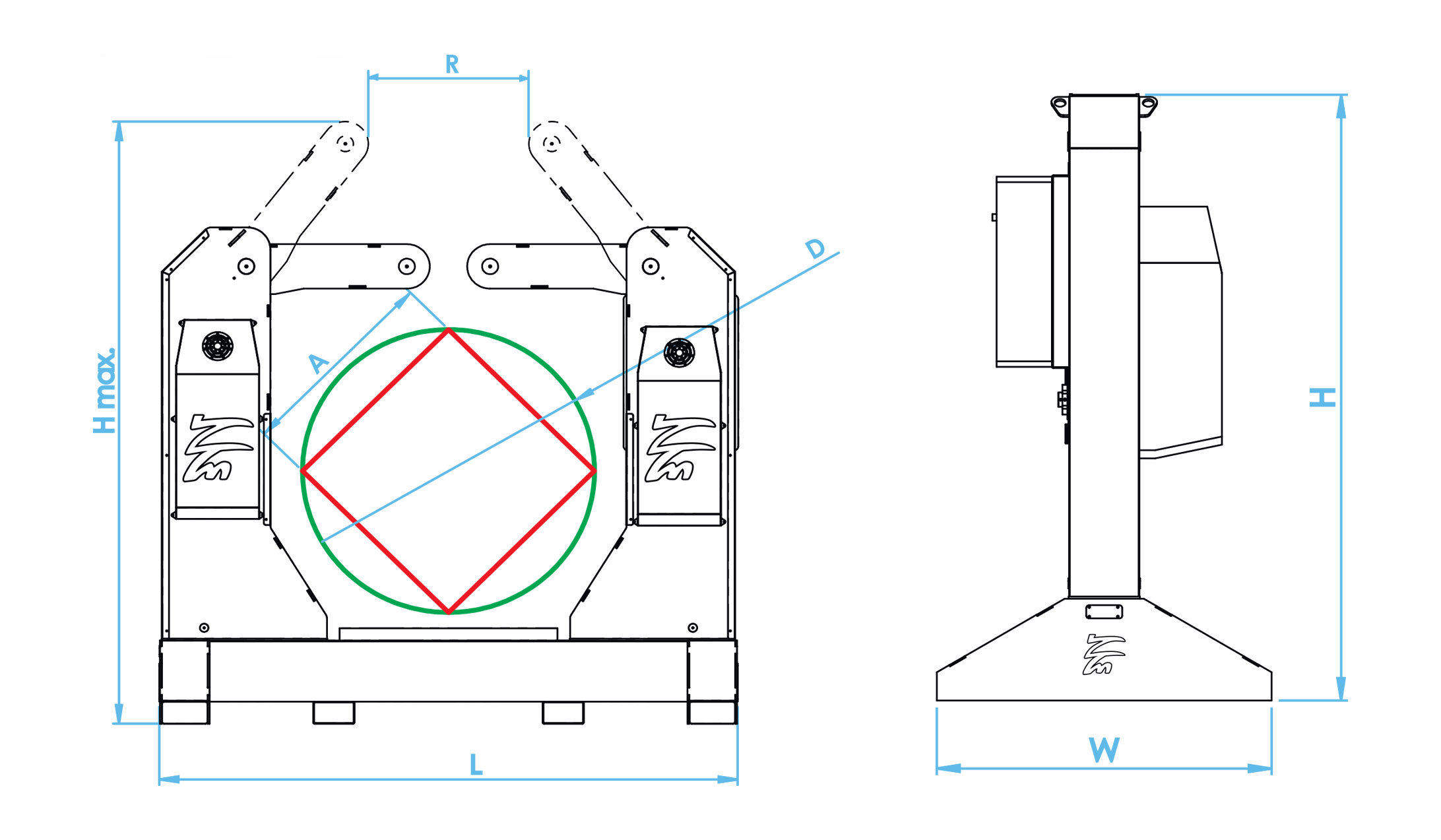

| MODEL | TTMZC-3 | TTMZC-5 | TTMZC-10 |
| Load Capacity (kg) | 3000 | 5000 | 10 000 |
| Load Capacity per Unit (kg) | 1500 | 2500 | 5000 |
| Workpiece Dimensions (mm) (A) | 900x900 | 900x900 | 1200x1200 |
| Workpiece Diameter (mm) (D) | 1200 | 1200 | 1700 |
| Distance Between Cylinders (mm) (R) | 1300 | 1300 | 1800 |
| Rotation Speed (rpm) | 6 | 5 | 4 |
| Rotation Motor Power (kW) | 4 pcs x 0,55 | 4 pcs x 1,1 | 4 pcs x 2,2 |
| Maximum Height (mm) (H max.) | 2750 | 2750 | 3500 |
| Input Power | 380V 3 Phase 50Hz | 380V 3 Phase 50Hz | 380V 3 Phase 50Hz |
| Total Length (mm) (L) | 3100 | 3100 | 3800 |
| Total Width (mm) (W) | 1200 | 1200 | 1600 |
| Total Height (mm) (H) | 2250 | 2250 | 2250 |
| Weight (kg) | 2200 | 2500 | 3000 |
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
