Teknotork’s longitudinal welding machines provide high precision and automation for axial welding of long-edged sheet and cylindrical parts. They standardize quality to reduce welding defects, save time in mass production, lower costs, and deliver high-performance solutions.

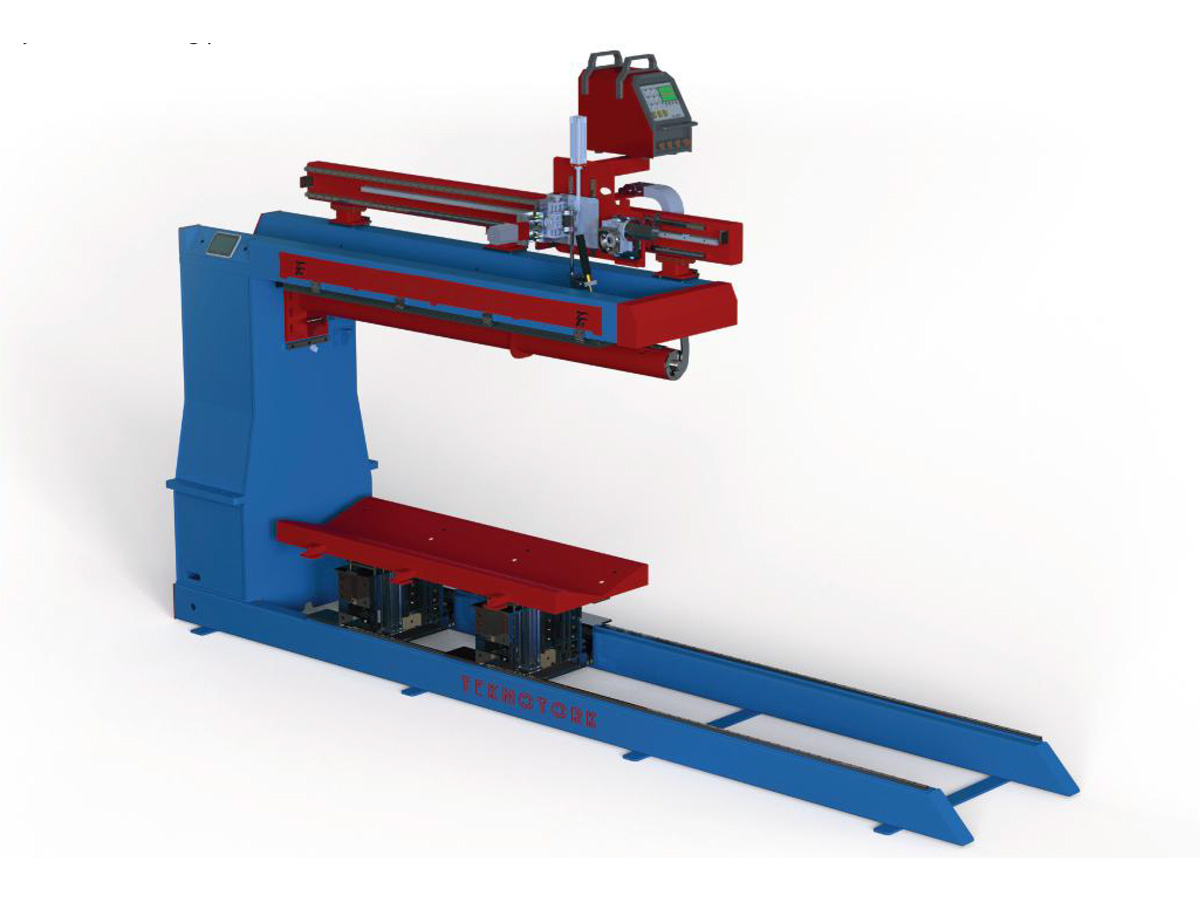

Longitudinal Welding Machine
The longitudinal seam welding machine is designed for axial welding of cylindrical, conical, and flat sheets or plates. The structure and design of the finger clamping mechanism ensures proper alignment of the welding material on the workpieces.
Precisely machined variable-speed sliding guides allow the torch to accurately follow the weld seam.
Adopting PLC programming logic, this welding machine is provided as standard with the ability to save at least 20 different programs, catering to users working with multiple workpiece sizes. Optional features and programmable welding control offer unique flexibility for the welding process. Compatible with TIG, Plasma, MIG, and Laser welding methods.
Standard Features:
Fully welded body structure.
Alignment knife.
PLC automation.
7” touch screen.
Mandrel end lock safety switch.
Vertical adjustment for the torch.
Precision linear guide for smooth motion.
Foot-pedal operated finger clamping (CuCrZr) system.
Independent left and right finger clamping movement.
Standard cable carrier protecting hoses and cables.
Advanced carriage control.
Automatic pre-locking.
Automatic pneumatic torch retraction.
All programs can be saved to memory and recalled instantly when needed.
Optional Features:
Compatibility with Sub-Arc welding.
Cold wire feeding.
Laser seam tracking system.
Oscillating welding.
Water cooling circuit inside the copper bar.
Loading carriage (manual or motorized).

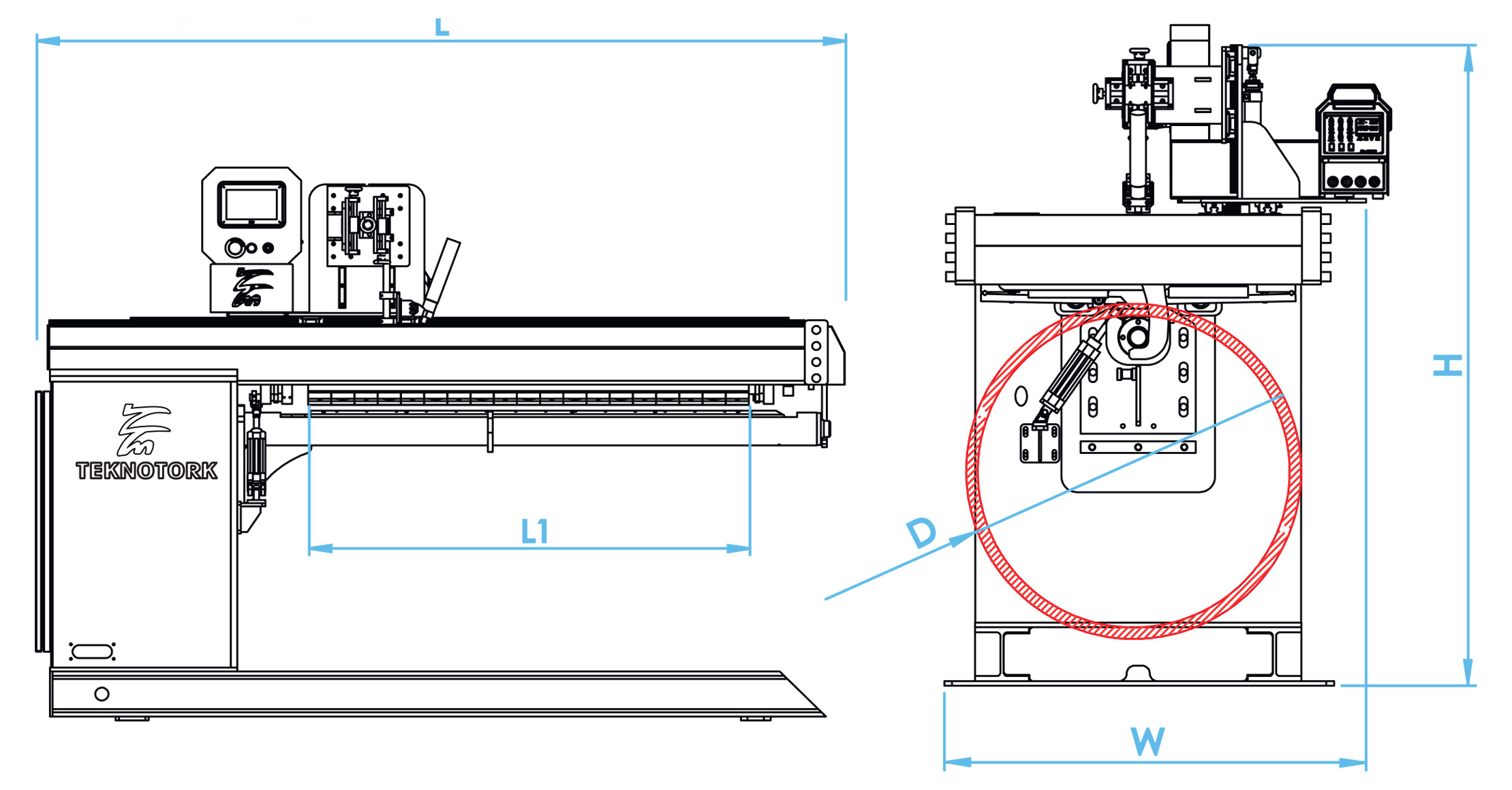

| MODEL | TTBKM - 1000 | TTBKM - 1500 | TTBKM - 2000 | TTBKM - 2500 |
| Workpiece Diameter Range (mm) | 150 - 650 | 200 - 650 | 250 - 850 | 300 - 1000 |
| Max. Welding Length (mm) | 1000 | 1500 | 2000 | 2500 |
| Workpiece Thickness (mm) | 0.6 - 3 | 0.6 - 4 | 0.6 - 8 | 0.6 - 10 |
| Finger Clamping Press (Pneumatic) | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Finger Clamping Pressure (bar) | 6 | 6 | 6 | 6 |
| Power Supply | 380V - 50 Hz | 380V - 50 Hz | 380V - 50 Hz | 380V - 50 Hz |
| Travel Speed Range (mm/min) | 0 - 2000 | 0 - 2000 | 0 - 2000 | 0 - 2000 |
| Total Length (mm) | 2150 | 2650 | 3150 | 3650 |
| Total Width (mm) | 1050 | 1050 | 1400 | 1400 |
| Total Height (mm) | 2000 | 2000 | 2250 | 2500 |
| Weight (kg) | 1300 | 1800 | 2300 | 2800 |
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
