A New Era of Efficiency with Smart Systems
Self-Adjusting Rotators are highly efficient and practical welding positioning systems that automatically adapt to tanks with different diameter ranges. Thanks to their automatically adjustable roller structure, they allow quick transitions between different workpieces.
Self-Adjusting Rotators

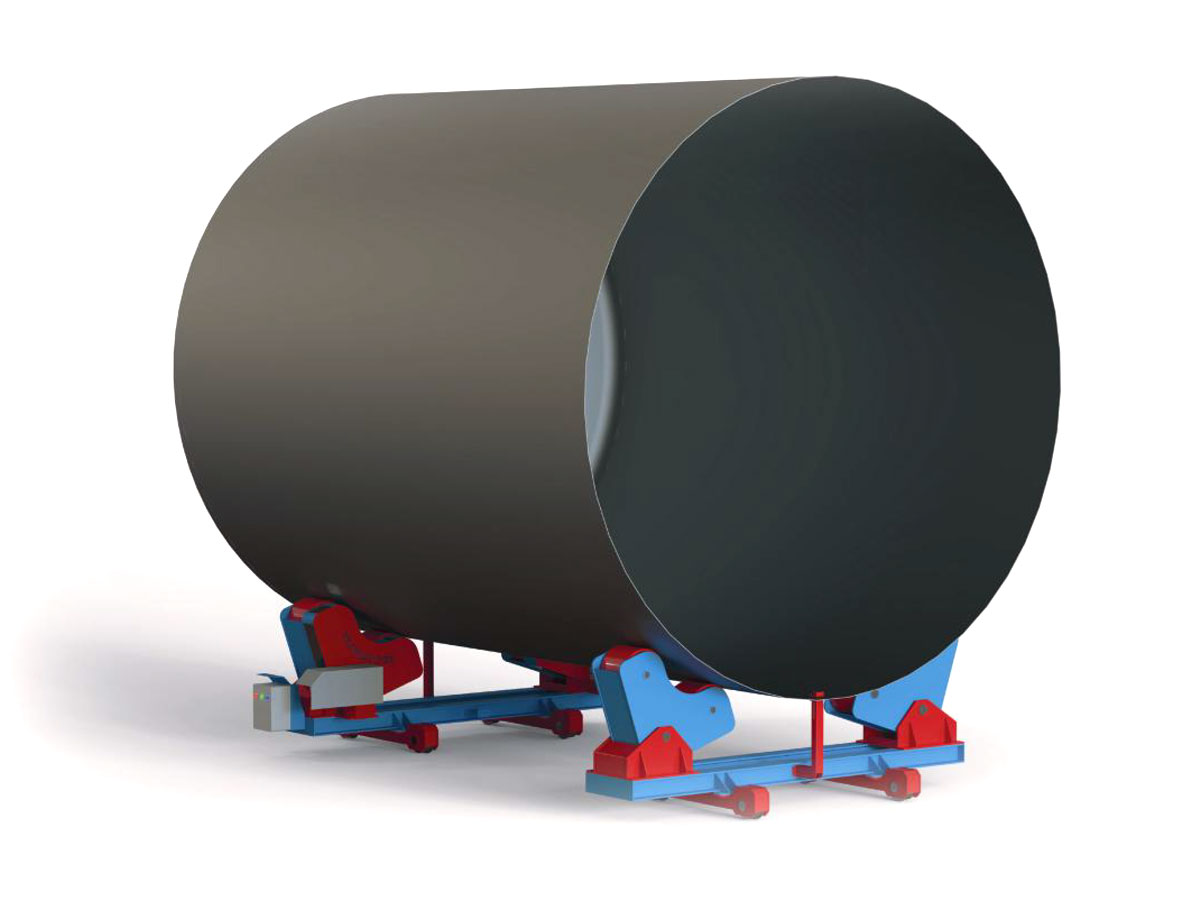

Self-adjusting rotators automatically adjust their roller beds to accommodate all tank diameters within specified diameter ranges. These types of rotators are designed to handle varying tank diameters from one job to another. The roller beds, hinged to the support frames, automatically open and close when large-diameter tanks are loaded. As in the conventional type, the motor-reducer drive is applied to both roller sets in the drive unit, providing better grip on the tank.
Depending on the tank length, additional idle roller sets are recommended for workpieces longer than 10–15 meters.
STANDARD FEATURES
5 m wired control pendant.
Polyurethane (PU) rollers.
Digital speed indicator on the control pendant for monitoring rotation speed.
Adjustable rotation speed.
Manual diameter adjustment of rollers on machined slides.
Double foot pedal for right-left rotation.
Adjustable drive speed.
AC motor with brake.
OPTIONAL FEATURES
7'' touchscreen.
Wireless remote control.
Backlash-free high-precision reducer with servo motor.
Synchronized operation with column & boom.
Manual or motorized diameter adjustment of rollers with lead screw.
Anti-drift system.
Manual or motorized bogie sub-chassis for use with floor rails.
Additional idle roller sets.
Steel rollers for high-temperature applications.

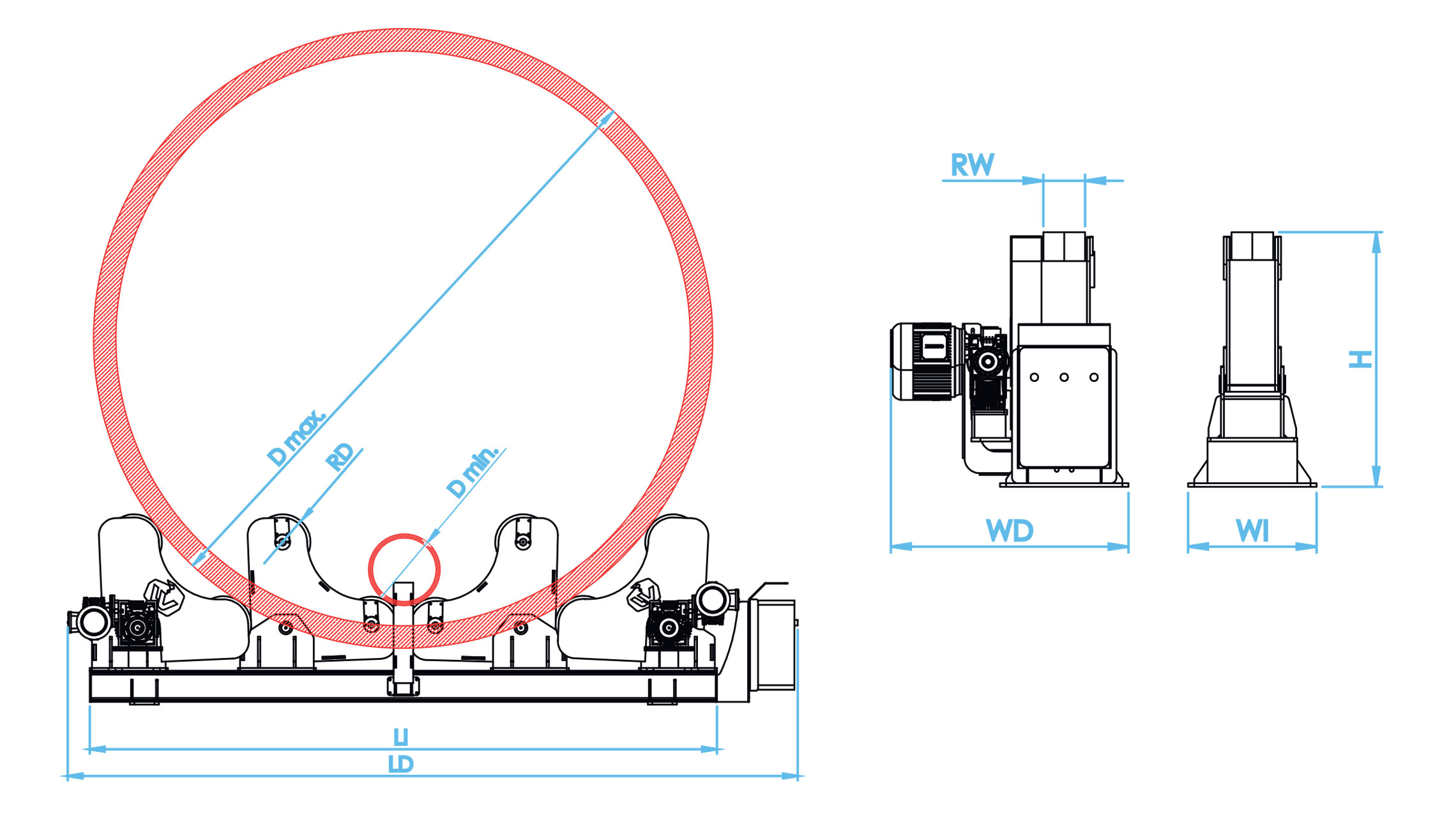

| MODEL | TTMSROT-3 | TTMSROT-5 | TTMSROT-10 | TTMSROT-20 | TTMSROT-50 | TTMSROT-80 | TTMSROT-100 |
| Load Capacity (kg) | 3000 | 5000 | 10 000 | 20 000 | 50 000 | 80 000 | 100 000 |
| Load Capacity per Unit (kg) | 1500 | 2500 | 5000 | 10 000 | 25 000 | 40 000 | 50 000 |
| Rotation Speed (mm/min) | 200-1200 | 200-1200 | 200-1200 | 200-1200 | 200-1200 | 200-1200 | 200-1200 |
| Diameter Range (mm) (D) | 230-2500 | 250-3000 | 450-3000 | 450-4600 | 500-4600 | 550-5500 | 600-5500 |
| Roller Diameter (mm) (RD) | 200 | 200 | 250 | 300 | 380 | 400 | 450 |
| Roller Width (mm) (RW) | 60 | 60 | 140 | 160 | 170 | 180 | 400 |
| Roller Material | PU | PU | PU | PU | PU | PU | Steel |
| Motor Power (kW) | 0,37 x 1 pc | 0,37 x 1 pc | 0,37 x 2 pcs | 0,55 x 2 pcs | 0,75 x 2 pcs | 1,1 x 2 pcs | 1,5 x 2 pcs |
| Input Power | 380V 3PH 50Hz | 380V 3PH 50Hz | 380V 3PH 50Hz | 380V 3PH 50Hz | 380V 3PH 50Hz | 380V 3PH 50Hz | 380V 3PH 50Hz |
| Overall Length Idler (mm) (LI) | 1040 | 1150 | 2000 | 2100 | 2350 | 2850 | 2870 |
| Overall Width Idler (mm) (WI) | 330 | 350 | 500 | 550 | 700 | 900 | 900 |
| Overall Length Drive (mm) (LD) | 1350 | 1500 | 2000 | 2100 | 2350 | 3350 | 3450 |
| Overall Width Drive (mm) (WD) | 570 | 570 | 800 | 850 | 1100 | 1250 | 1450 |
| Top Height of Rollers (mm) (H) | 525 | 525 | 880 | 940 | 1040 | 1350 | 890 |
| Total Weight (kg) | 400 | 430 | 1100 | 1350 | 2600 | 5350 | 6250 |
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
