A New Era of Efficiency with Smart Systems
The Geared Positioner securely holds workpieces such as flanges and pipes and rotates them 360° to provide the most suitable position for welding operations. It increases efficiency in metal fabrication with adjustable speed control, pedal-based direction change, and various connection options.

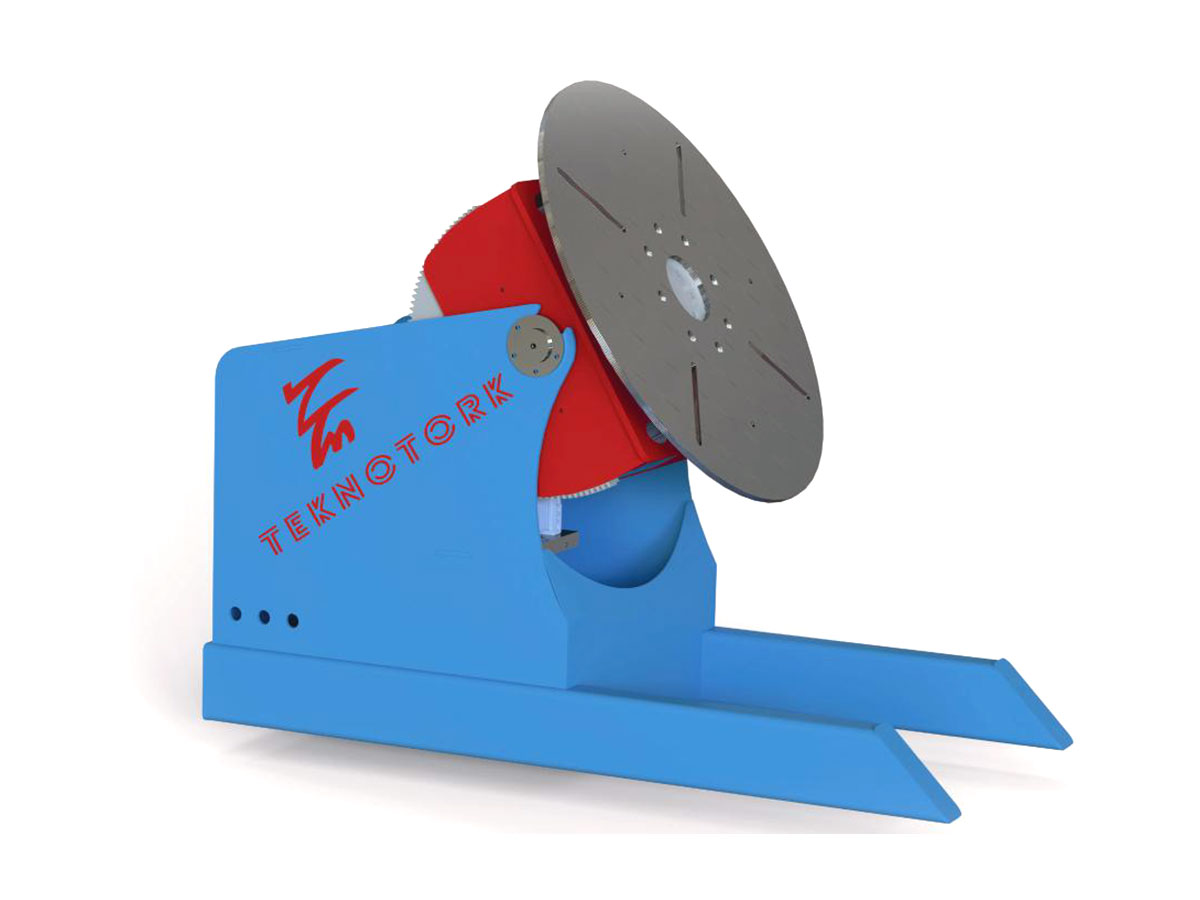

Geared Type Positioner
The purpose of the welding positioner is to position the workpiece properly for welding operations. Welding positioners are specially designed equipment used to securely hold, tilt, and rotate industrial workpieces such as flanges and pipes up to a full 360 degrees. This allows the operator to work in the most suitable position on a stable surface. The positioner table (disc) is equipped with slots and holes that allow pipes, molds, or flanges of different sizes to be securely fixed.
One of the most important advantages of the welding positioner is its ability to work at workpiece angles that cannot be achieved by cranes. For this reason, it is widely used in the metal fabrication industry for shaping metal parts or components.
Depending on customer requirements, the welding positioner can be used alone or together with welding manipulators or pipe supports.
Standard Features
• 5 m wired hand control.
• Digital speed indicator on the control unit to monitor rotation.
• Table rotation speed control.
• Dual foot pedal for right-left rotation.
• Machined table with M16 holes and T-type slots for fixing the workpiece.
• Adjustable drive speed.
• AC drive system for rotation and tilting.
Optional Features
• 3-jaw chuck on the table.
• 7” touchscreen.
• Wireless remote control.
• Backlash-free high precision reducer with servo motor.
• Hydraulic clamping chuck.
• Synchronized operation with column & boom system.
• Additional slots and holes on the table.
• Custom production according to requirements.
• Grounding capacity: 200 Amp, 400 Amp, 800 Amp.

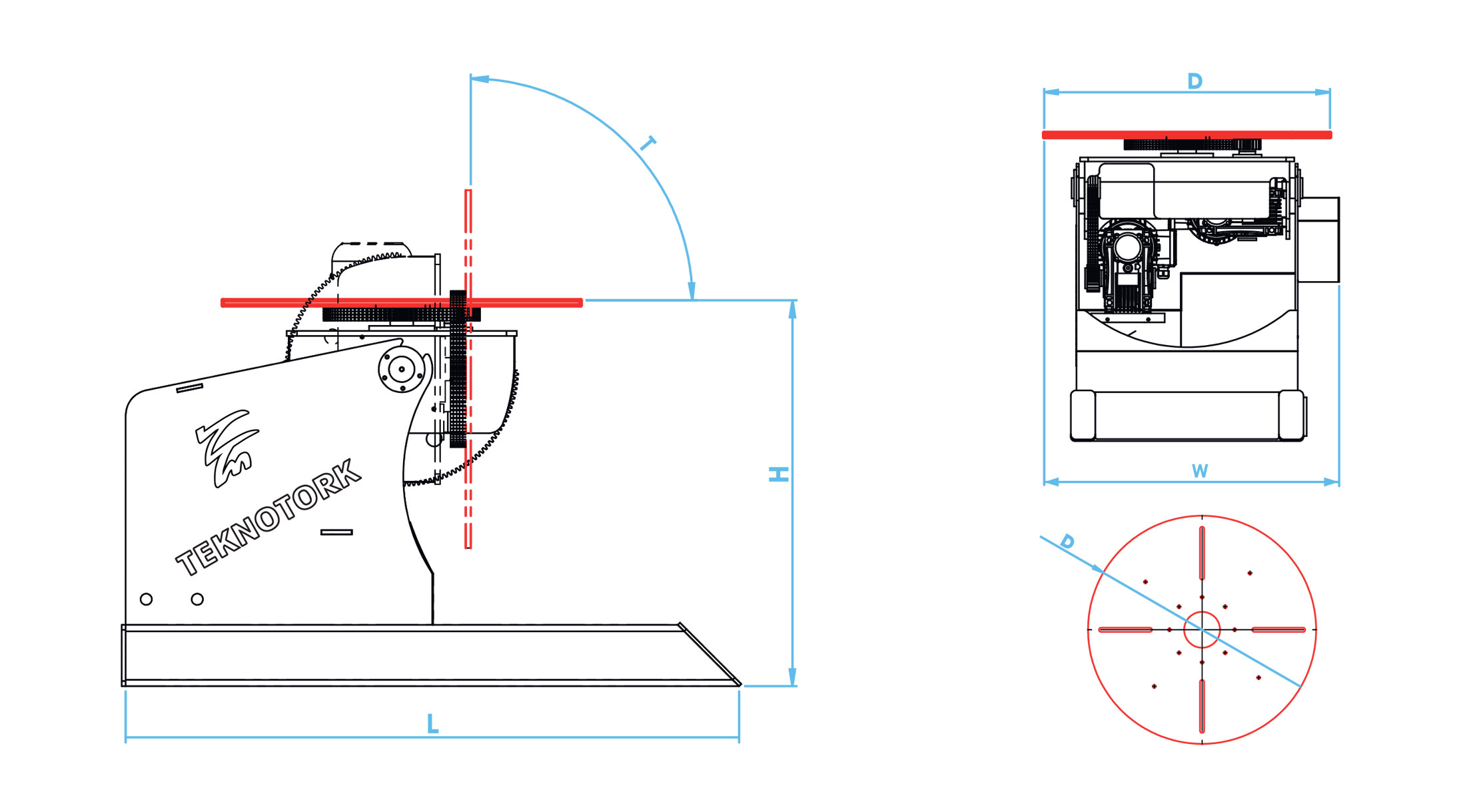

| MODEL | TTMPOZ-500 | TTMPOZ-1 | TTMPOZ-3 |
| Load Capacity (kg) | 500 | 1000 | 3000 |
| Table Rotation Capacity (kg) | 500 | 1000 | 3000 |
| Eccentricity (mm) | 150 | 150 | 150 |
| Center of Gravity (mm) | 150 | 150 | 150 |
| Table Size (mm) (D) | 700 | 1150 | 1250 |
| Tilt Angle (°) (T) | 90° | 90° | 90° |
| Rotation Speed (rpm) | 0,2 - 2 | 0,15 - 1,5 | 0,1 - 1 |
| Welding Current (A) | 400 | 600 | 600 |
| Input Power | 380V 3P 50Hz | 380V 3P 50Hz | 380V 3P 50Hz |
| Total Width (mm) (W) | 700 | 1150 | 1250 |
| Total Height (mm) (H) | 750 | 1150 | 1250 |
| Total Length (mm) (L) | 1150 | 1850 | 2000 |
| Weight (kg) | 450 | 1450 | 1850 |
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
