A New Era of Efficiency with Smart Systems

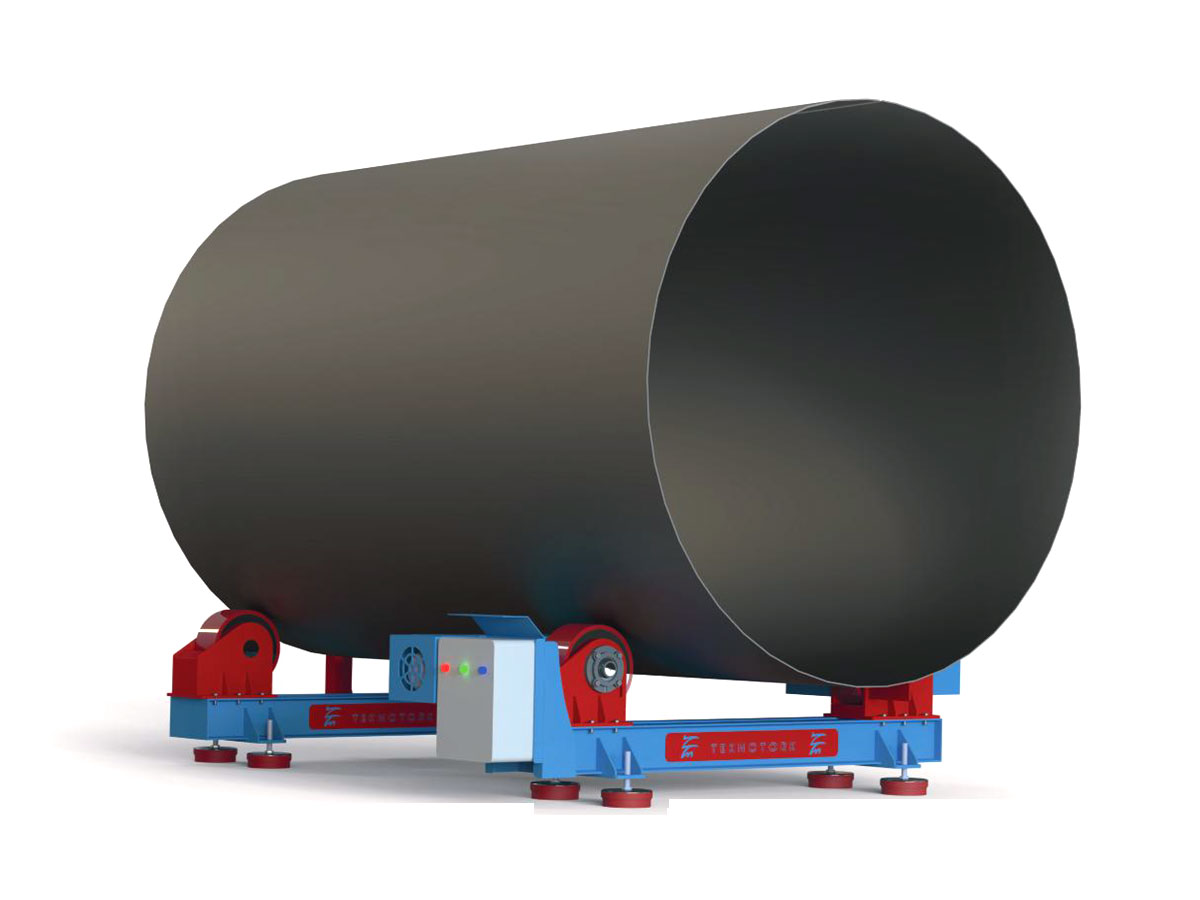

The Conventional Rotator is an industrial device composed of driven and idle units that enables the rotation of pipes and cylindrical parts during welding operations. Its diameter can be adjusted manually, and it can be equipped with optional additional features.
Conventional Rotator
Conventional welding rotators consist of a driven unit and an idle unit.
Additional idle units can be added according to pipe length or customer preferences.
The fixed centerline design is an effective method to adjust the rollers’ center position and ensure consistent alignment.
The diameter adjustment between the two rollers is done manually using a drag-clamp method, providing practicality, low maintenance requirements, and user-friendly operation.
STANDARD FEATURES
• Pendant control with 5 m cable.
• Polyurethane (PU) rollers.
• Digital speed indicator on the pendant for rotation monitoring.
• Adjustable rotation speed.
• Manual roller diameter adjustment on machined slides.
• Dual foot pedals for left-right rotation.
• Adjustable driving speed.
• Braked AC motor.
OPTIONAL FEATURES
• 7" touch screen.
• Wireless remote control.
• High-precision servo motor reducer with no backlash.
• Synchronized operation with column and boom.
• Automatic diameter adjustment of rollers via lead-screw.
• Anti-slip device.
• Manual or motorized bogie lower units for use with floor rails.
• Additional idle sets.
• Steel rollers for high-temperature applications.
| MODEL | TTMKROT-3 | TTMKROT-5 | TTMKROT-10 | TTMKROT-20 | TTMKROT-50 | TTMKROT-80 | TTMKROT-100 |
| Load Capacity (kg) | 3000 | 5000 | 10 000 | 20 000 | 50 000 | 80 000 | 100 000 |
| Load Capacity Per Unit (kg) | 1500 | 2500 | 5000 | 10 000 | 25 000 | 40 000 | 50 000 |
| Rotation Speed (mm/min) | 200-1200 | 200-1200 | 200-1200 | 200-1200 | 200-1200 | 200-1200 | 200-1200 |

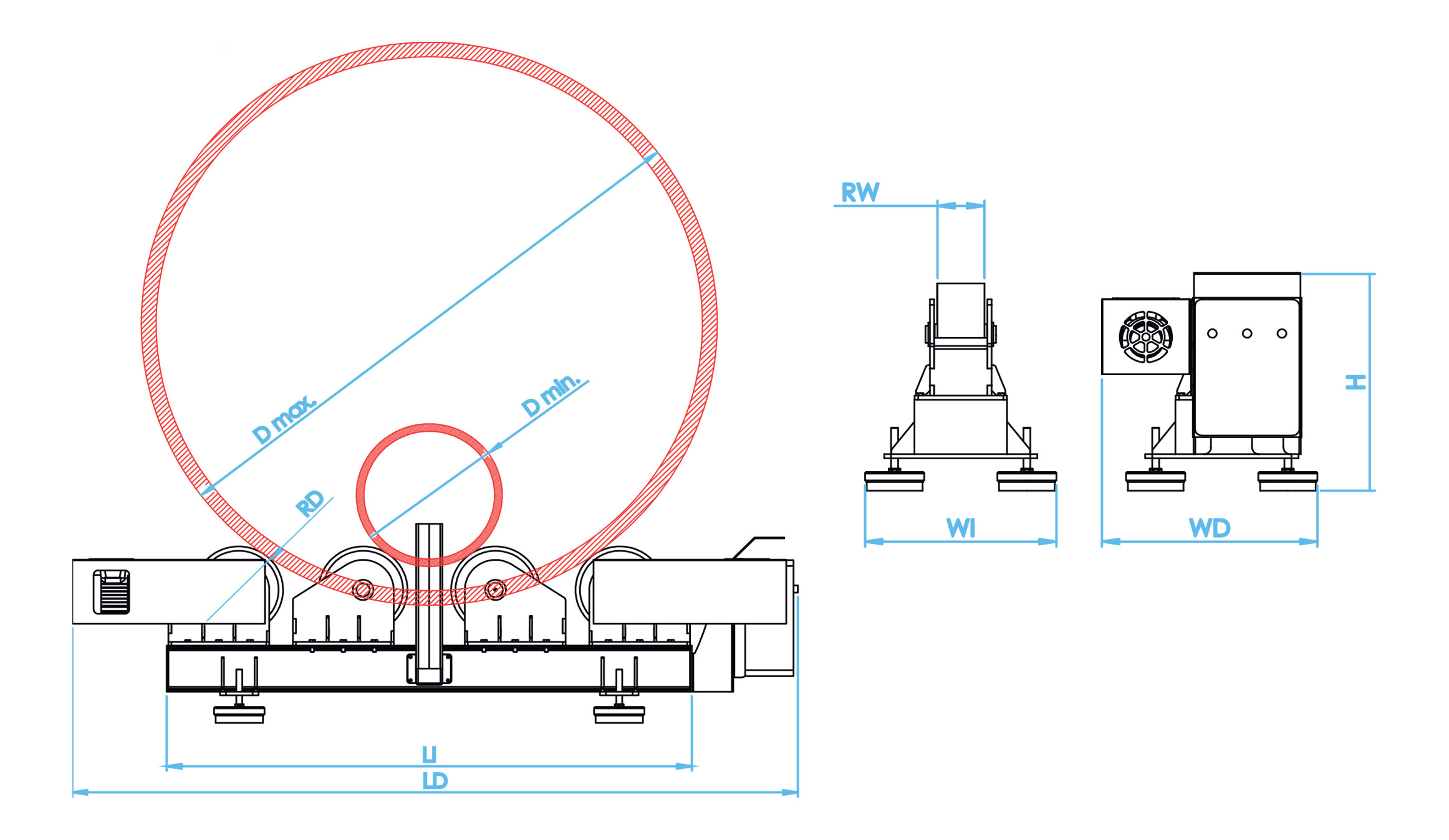

| Diameter Range (mm) D | 200-2000 | 250-3000 | 250-3000 | 450-4500 | 450-4500 | 550-5500 | 600-6000 |
| Roller Diameter (mm) RD | 200 | 250 | 300 | 300 | 350 | 400 | 450 |
| Roller Width (mm) RW | 60 | 70 | 160 | 160 | 400 | 400 | 400 |
| Roller Material | PU | PU | PU | PU | PU | Steel | Steel |
| Motor Power (kW) | 0,37 x 1 pcs | 0,37 x 1 pcs | 0,55 x 2 pcs | 0,37 x 2 pcs | 0,75 x 2 pcs | 1,1 x 2 pcs | 1,5 x 2 pcs |
| Idler Unit Total Length (mm) LI | 1400 | 2000 | 2000 | 2800 | 2800 | 3650 | 4150 |
| Idler Unit Total Width (mm) WI | 330 | 380 | 400 | 450 | 550 | 700 | 800 |
| Drive Unit Total Length (mm) LD | 1700 | 2900 | 2900 | 3200 | 3550 | 4450 | 5000 |
| Drive Unit Total Width (mm) WD | 700 | 500 | 550 | 700 | 1000 | 1100 | 1200 |
| Roller Top Height (mm) H | 350 | 400 | 450 | 650 | 725 | 800 | 900 |
| Total Weight (kg) | 270 | 440 | 500 | 1100 | 1900 | 3100 | 4600 |
| Input Power | 380V 3 Phase 50Hz | ||||||
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
