A New Era of Efficiency with Smart Systems

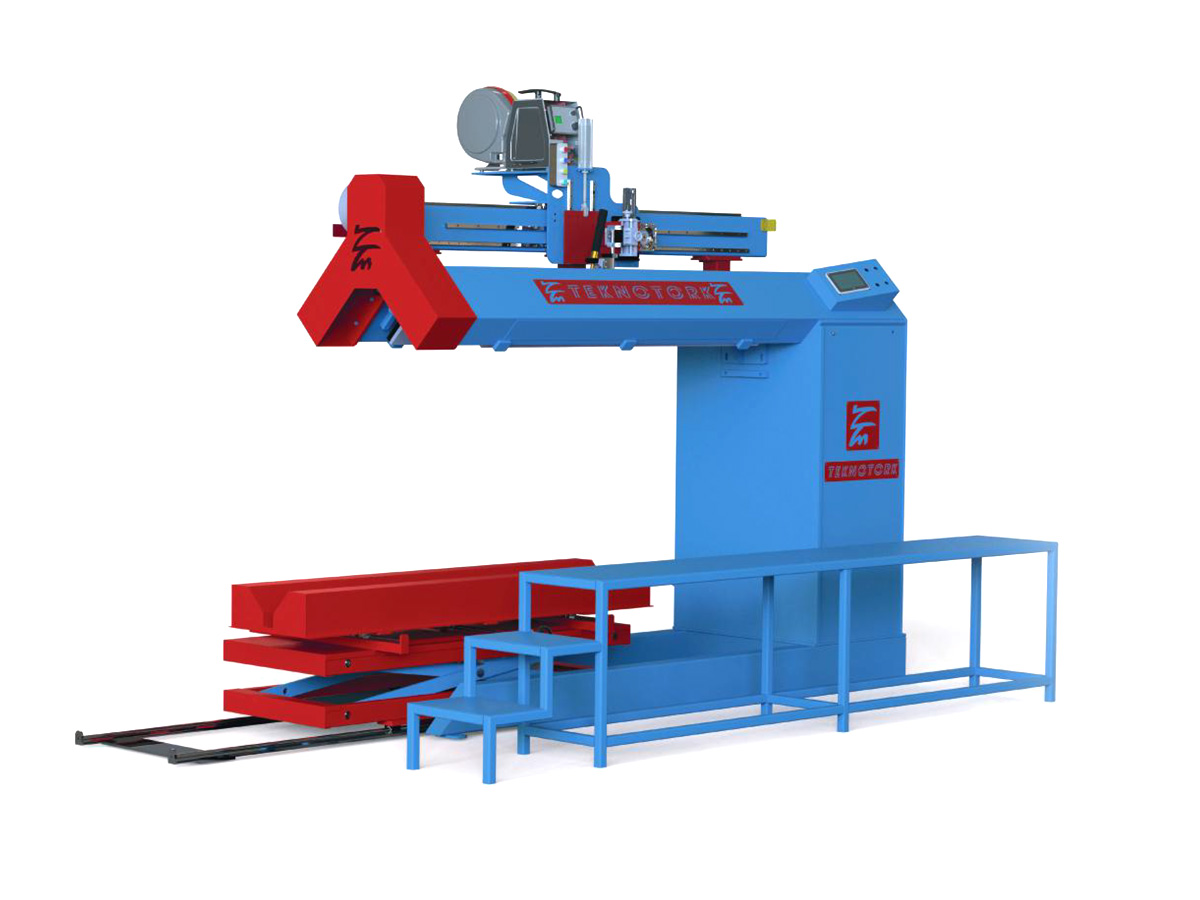

Teknotork’s corner welding machines provide high precision and full automation for joining sheet metal parts at 90-degree angles. They enhance consistency in welding operations, minimize errors, increase production efficiency, reduce labor costs, and deliver results at high-quality standards.
The corner welding machine is designed to produce various box lengths, sizes, thicknesses, and alloys. It operates automatically to provide smoother, full-penetration, and aesthetically precise weld seams with minimal labor costs.
Adopting PLC programming logic, the Corner Welding Machine is offered as standard with the capability to save at least 20 different recipes, considering users who work with multiple parts of different sizes. Optional features and programmable welding control provide unique capabilities for the welding process.
Standard Features
Suitable for TIG, Plasma, MIG, and Laser welding.
Fully welded production.
Alignment blade.
PLC automation.
7” Touch Screen.
Mandrel tip lock safety switch.
Vertical adjustment option for the torch.
Precision linear rail for smooth movement.
Foot pedal-operated finger clamping (CuCrZr) system.
Independent right and left finger clamping movement via foot pedals.
Standard cable carrier to protect hoses and cables.
Advanced carriage control.
Automatic pre-locking system.
Automatic pneumatic torch retraction.
All programs can be saved in memory and recalled instantly when needed.
Optional Features
Compatible with Sub-Arc (SAW) welding.
Cold wire feeding.
Laser seam tracking system.
Oscillation welding.
Water cooling circuit inside copper rod (with chiller device).
Loading carriage (manual or motorized).

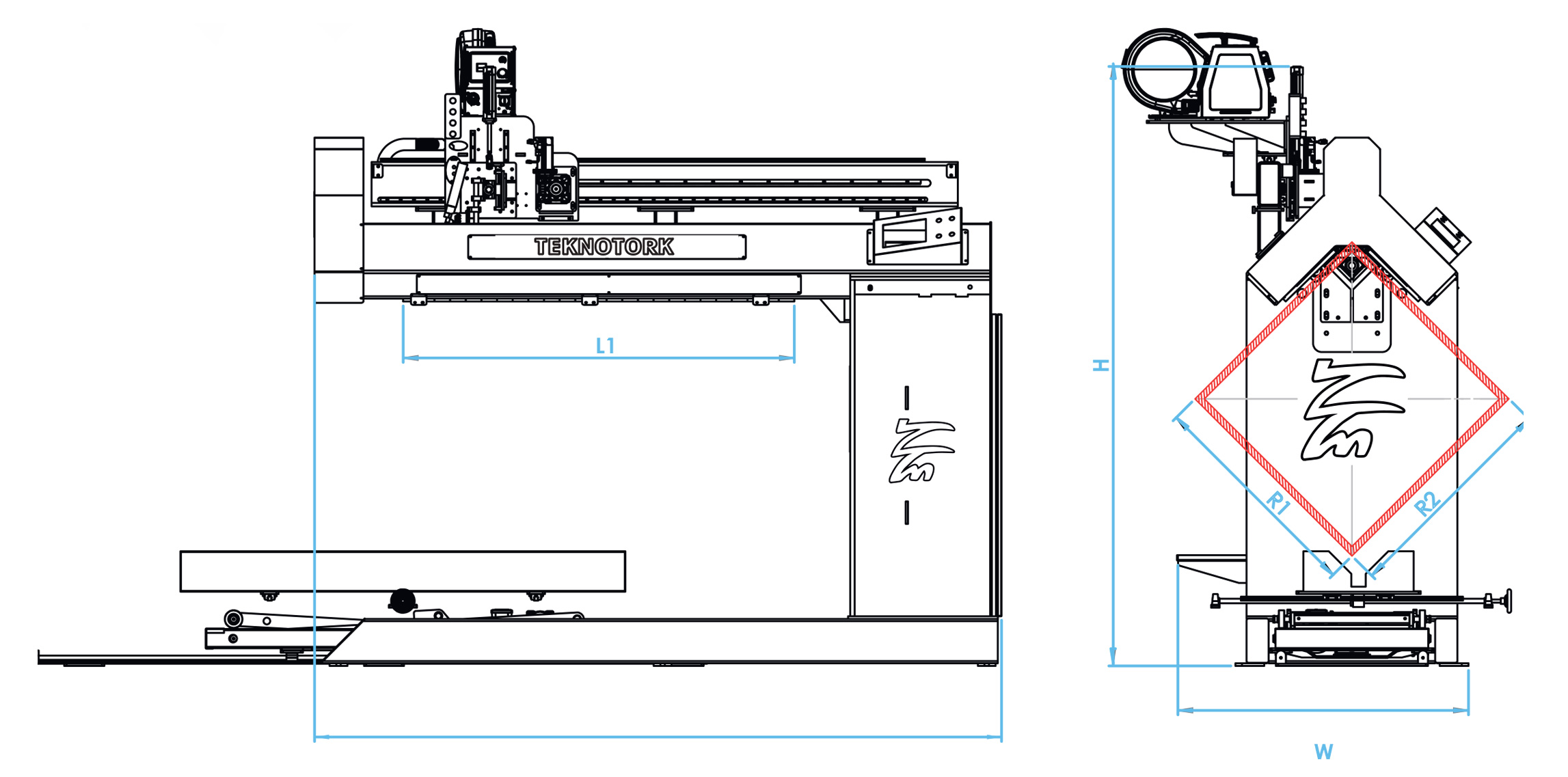

| MODEL | TTMKKM - 1000 | TTMKKM - 1500 | TTMKKM - 2000 |
| Min. Workpiece Size (mm) | 120 x 120 | 120 x 120 | 150 x 150 |
| Max. Workpiece Size (mm) | 600 x 600 | 1000 x 1000 | 1200 x 1200 |
| Max. Welding Length (mm) | 1000 | 1500 | 2000 |
| Workpiece Thickness (mm) | 0.6 - 3 | 0.6 - 4 | 0.6 - 8 |
| Finger Clamping Pressure (bar) | 6 | 6 | 6 |
| Power Supply | 380V 3P 50 Hz | 380V 3P 50 Hz | 380V 3P 50 Hz |
| Transport Speed Range (mm/min) | 0 - 2000 | 0 - 2000 | 0 - 2000 |
| Total Length (mm) | 2400 | 2900 | 3400 |
| Total Width (mm) | 1400 | 1400 | 1400 |
| Total Height (mm) | 2000 | 2500 | 2700 |
| Weight (kg) | 1300 | 1800 | 2300 |
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
