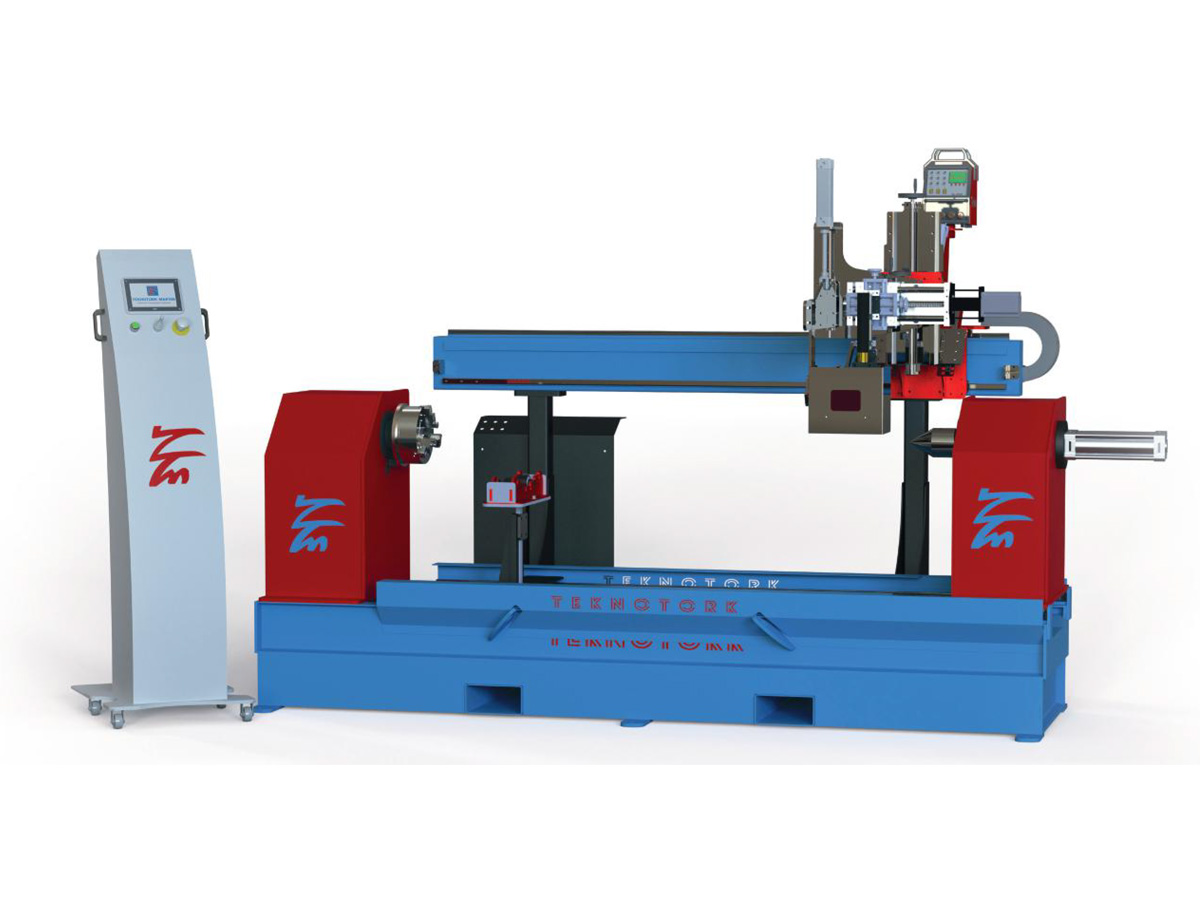

Circular Welding Machine

Circular welding machines are primarily used in production facilities for cylindrical pipes designed for water, oil, milk, and air tanks. These machines can be configured in standard setups or customized according to size and material specifications.

They are compatible with various welding methods such as MIG/MAG, TIG, and SAW for stainless steel, carbon steel, aluminum, iron, and other materials. According to customer requirements, dual welding heads and torches can be installed. Suitable for TIG, Plasma, MIG, and Laser welding processes.

Standard Features

• Compatible with TIG, Plasma, MIG, and Laser welding.
• Monolithic rigid all-steel frame with direct gear drive.
• Centering with 3-jaw chuck.
• Tailstock: Conical, rigid steel centering.
• Tailstock movement with pneumatic pusher for rapid positioning – maintains alignment across the full push range.
• Manual horizontal tailstock movement for workpieces of different lengths.
• PLC automation.
• 7” touch screen.
• Torque head automatically rises after all operations, providing clear access during loading and unloading.
• Motorized vertical adjustment for torque.
• Motorized horizontal side beam carriage(s).
• Precision linear rails for smooth motion.
• Standard cable carriers to support hoses and cables.
• Automatic pneumatic torque retraction.
• All programs can be saved in memory and recalled instantly when needed.

Optional Features

• Compatible with Sub-Arc welding.
• Cold wire feeding.
• Oscillating welding.
• Automatic hydraulic loader.
• Additional welding carriages (torches) for single or synchronized welding.
• Torch direction adjustable at 45° (pendulum motion).
• Protective cover made from flame-resistant fabric.
• Motorized length-adjustable tailstock.
• Custom-designed positioner. Gas cleaning via conical part on rear support.
