A New Era of Efficiency with Smart Systems
Teknotork Hydraulic Positioners provide ideal solutions for automatic and manual welding applications. Thanks to hydraulic height adjustment, positioning of the workpiece becomes easier, ensuring high efficiency and quality. With its durable structure and user-friendly control system, it delivers superior performance in industrial welding operations.

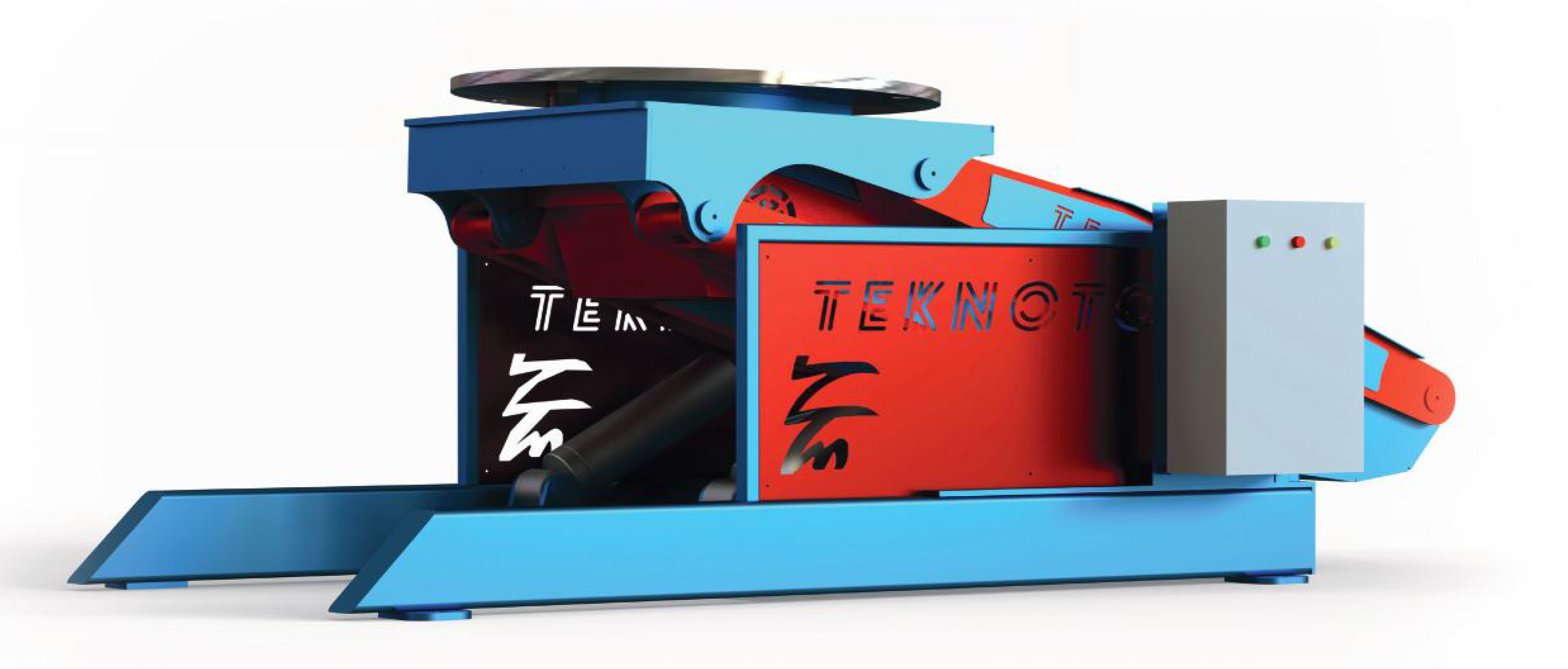

Hydraulic Positioner
Teknotork Engineering offers a comprehensive range of welding positioners suitable for both automatic and manual welding applications. These versatile machines increase the quality and efficiency of work by ensuring that welding operations are performed in the most suitable positions.
Our Geared Positioner models are equipped with a hydraulic height adjustment feature. This feature provides great convenience in operations such as tilting, rotating, and lifting workpieces. The control system is user-friendly and reliable, and comes with a wired control pendant that includes all standard functions. In addition, foot pedals that allow the table to rotate left and right are also provided as standard.
Standard Features
• 5 m wired control pendant
• Digital speed indicator for monitoring rotation
• Table rotation speed control
• Dual foot pedal for left-right rotation
• Hydraulic height adjustment
• Machined table with M16 holes and T-type slots
• Adjustable drive speed
• AC drive for rotation and tilting operations
Optional Features
• 3-jaw chuck
• 7-inch touchscreen
• Wireless remote control
• Backlash-free high precision reducer with servo motor
• Hydraulic clamping chucks
• Synchronized operation with column and boom system
• Additional slot options on the table
• Custom production according to requirements
• Grounding Capacity: 200 Amp, 400 Amp, 800 Amp

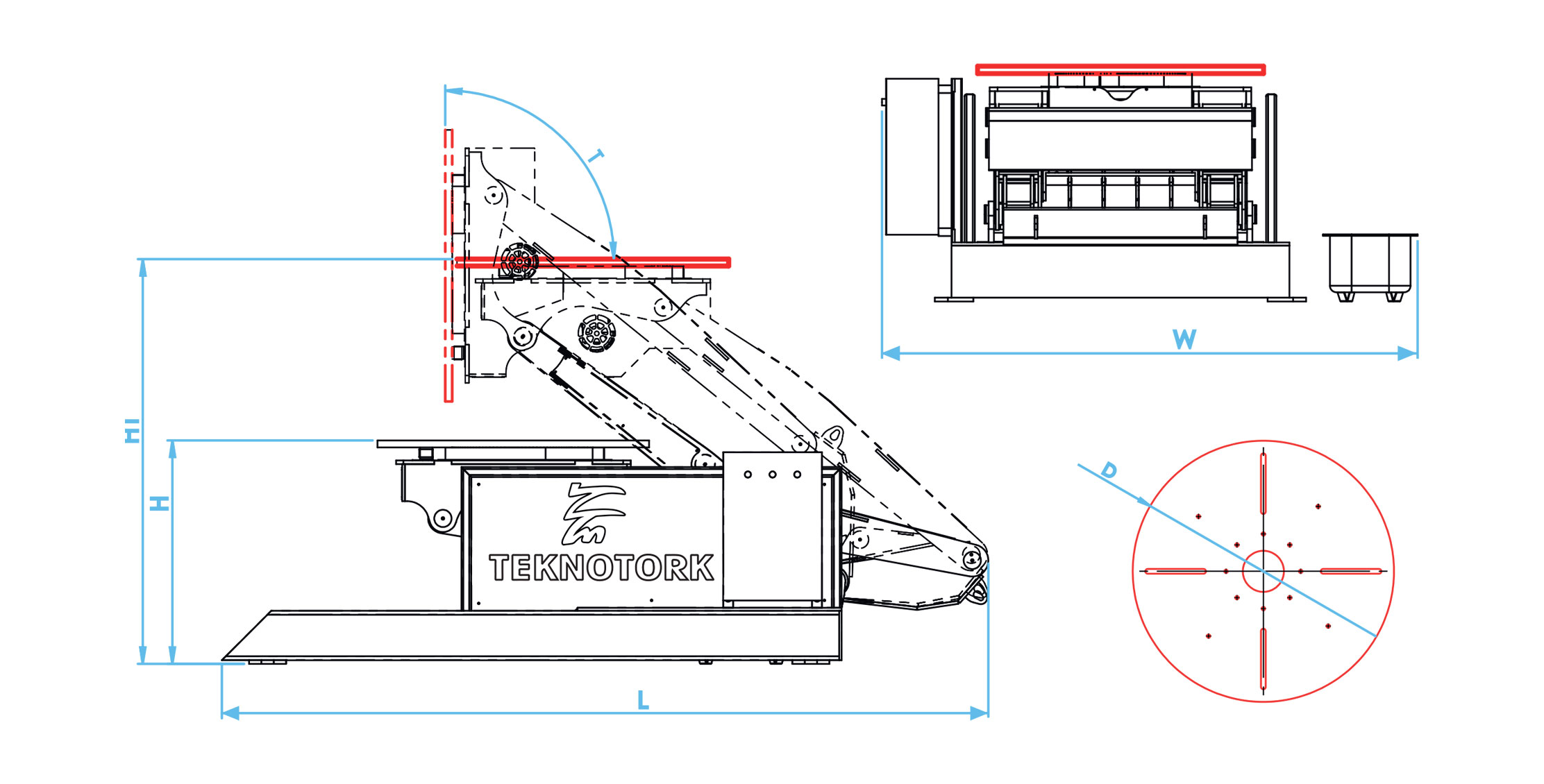

| MODEL | TTMPPOZ-1 | TTMPPOZ-3 | TTMPPOZ-5 |
|---|---|---|---|
| Load Capacity (kg) | 1,000 | 3,000 | 5,000 |
| Table Rotation Capacity (kg) | 1,000 | 3,000 | 5,000 |
| Eccentricity (mm) | 200 | 200 | 200 |
| Center of Gravity (mm) | 250 | 300 | 300 |
| Floor Height (mm) (H1) | 800 - 1300 | 850 - 1400 | 900 - 1500 |
| Table Size (mm) (D) | 1000 | 1100 | 1250 |
| Table Shape | Circular | Circular | Circular |
| Tilt Angle (°) | 90° | 90° | 90° |
| Rotation Speed (rpm) | 0,15 - 1,15 | 0,15 - 1 | 0,08 - 0,8 |
| Welding Current (A) | 300 | 400 | 500 |
| Input Power | 380V 3P 50Hz | 380V 3P 50Hz | 380V 3P 50Hz |
| Total Width (mm) (W) | 1300 | 1400 | 1500 |
| Total Height (mm) (H) | 800 | 850 | 900 |
| Total Length (mm) (L) | 2800 | 3000 | 3100 |
| Weight (kg) | 1700 | 1800 | 2000 |
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
