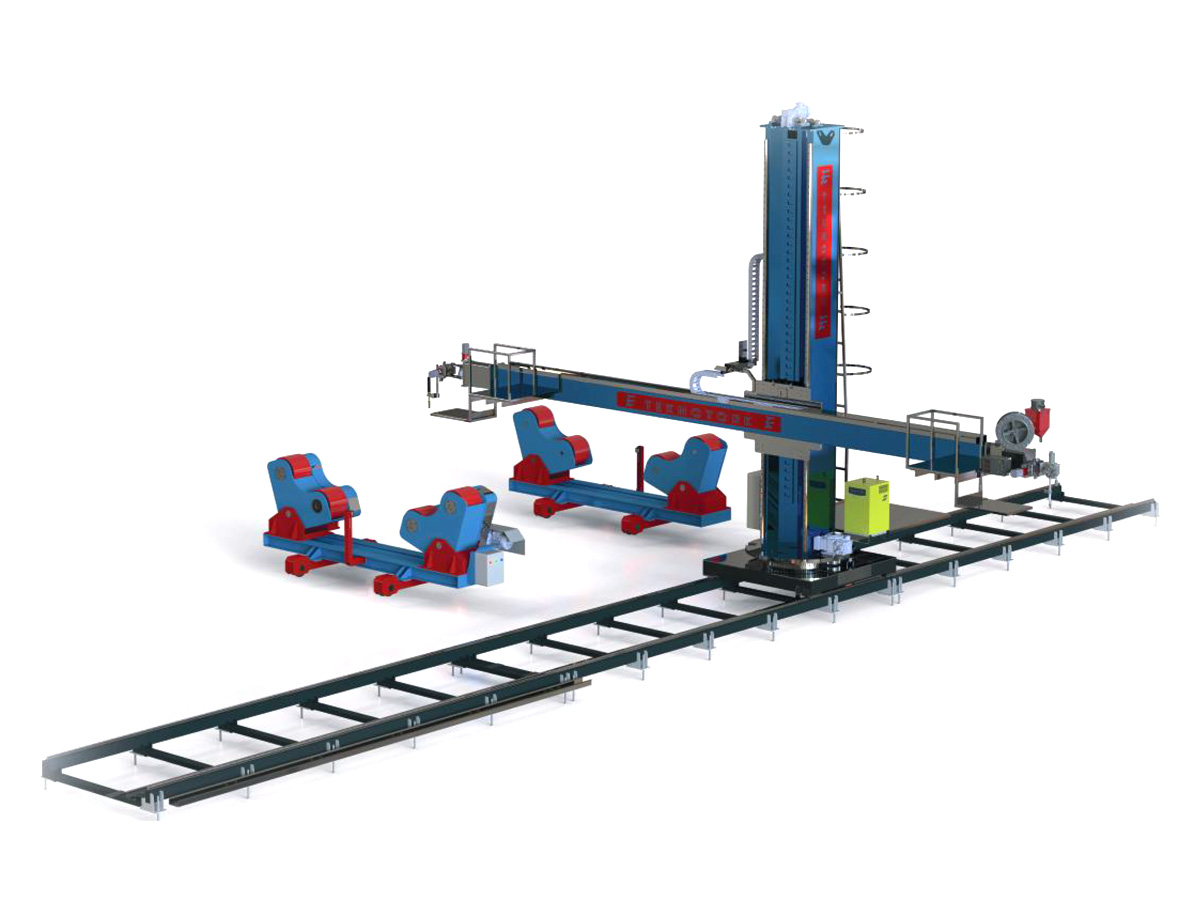

Teknotork’s column boom welding machine systems facilitate automatic welding on large components by enabling precise vertical and horizontal movement of the welding torch. Compatible with various welding heads, they enhance weld quality while providing flexibility, safety, and efficiency in industrial production.
Column Boom Welding Machine Systems (Welding Manipulators) are specially designed to increase productivity and achieve high-quality standards. These systems provide ideal solutions, especially when used with a rotator set or positioner for the serial production of large workpieces.
All Column Boom Welding Machine systems are equipped with passive safety features such as an automatic lock, gear motor brake, and safety chains that engage in the event of a power interruption.
Column Boom Welding Machine systems can operate compatibly with additional features such as a motorized base, 270° rotating column, slides for X-Y axis movement, flux recovery systems, and seam tracking systems.
Standard Features:
7” touch screen
Advanced PLC program
Adjustable linear crane speed
Counterweight system for vertical crane movement
Smooth motion on all axes with high-precision linear guides
End-of-travel limit switches
Program memory storage and instant recall
Energy chain protecting cables and hoses
Ladder placed next to the column
Chained counterweight system
Motor with brake
Passive mechanical lock system against crane drop
Illumination lamp at crane tip
Optional Features:
Laser pointer
Flux recirculation system
Monitoring system with camera and 15” screen
Laser or finger-type seam tracking system
Slide system for X-Y axis movement
Rail-mounted base
270° rotating column (manual or motorized)
Operator seat
Combination with positioner, horizontal rotating table, rotator, and similar systems

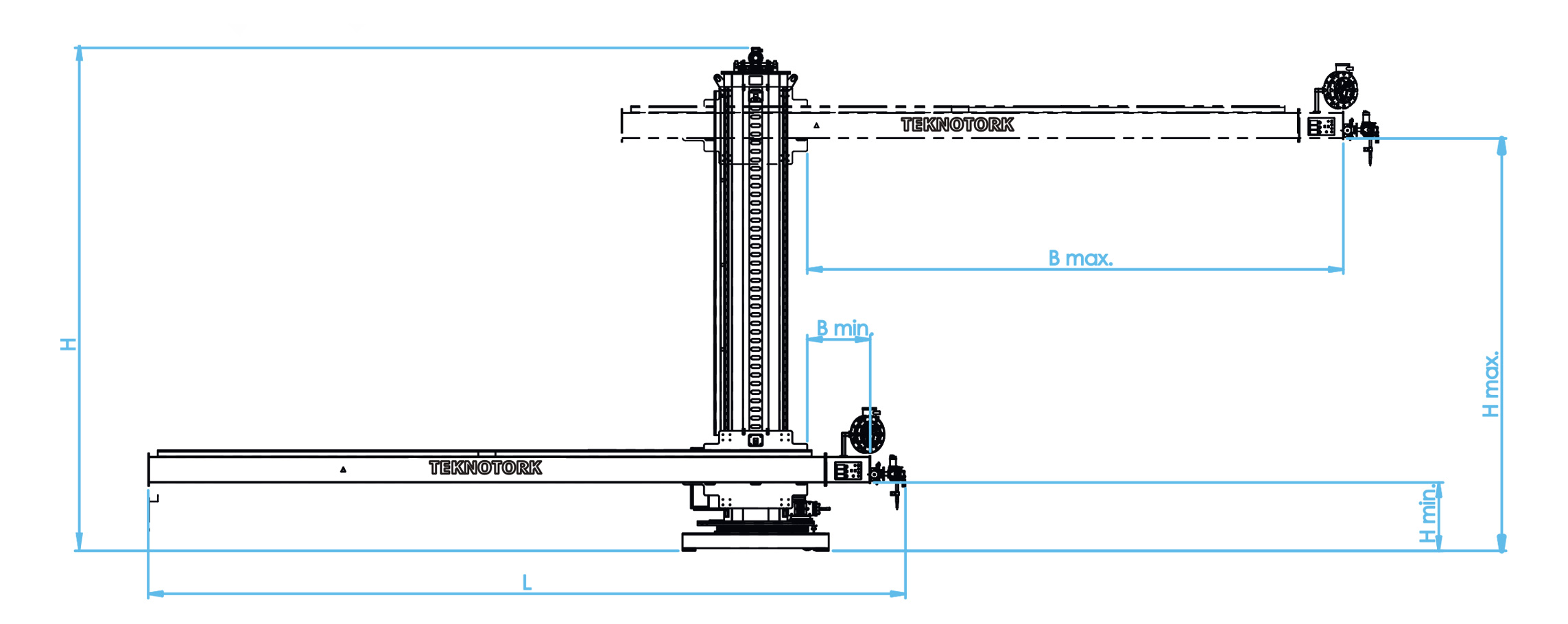

| MODEL | TTMKBS 3X3 | TTMDKM 4X4 | TTMDKM 5X5 | TTMDKM 6X6 |
|---|---|---|---|---|
| Max Load on Horizontal Arm (kg) | 300 | 250 | 200 | 150 |
| Boom Reach Bmin (mm) | 450 | 500 | 500 | 600 |
| Boom Reach Bmax (mm) | 3450 | 4500 | 5500 | 6600 |
| Working Height Hmin (mm) | 550 | 600 | 750 | 800 |
| Working Height Hmax (mm) | 3550 | 4750 | 5750 | 6850 |
| Total Height H (mm) | 4500 | 5750 | 6900 | 8000 |
| Vertical Axis Speed (mm/min) | 2000 | 2000 | 2000 | 2000 |
| Horizontal Axis Speed (mm/min) | 125–1000 | 125–1000 | 125–1000 | 125–1000 |
| Power Supply | 380V 3P 50Hz | 380V 3P 50Hz | 380V 3P 50Hz | 380V 3P 50Hz |
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
