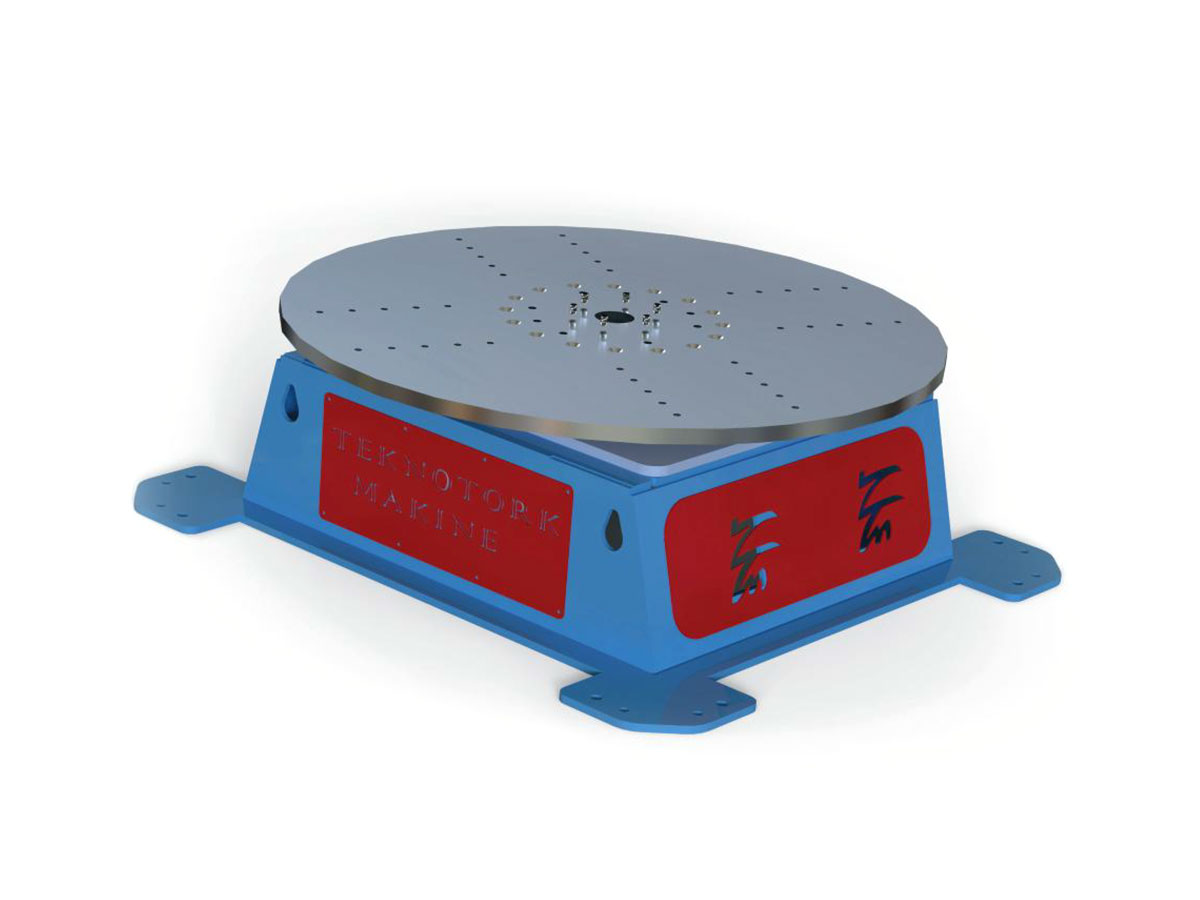

Rotary Table
The horizontal rotary table is specially designed for welding, surface cladding, or cutting operations of pipes, flange plates, pipelines, and other workpieces. This welding positioner is also suitable for operations such as assembly, cutting, inspection, grinding, and painting of workpieces.
Thanks to its horizontal design, this positioner allows the workpiece to be fixed at a lower level compared to tilting positioners. In addition, table or clamping options can be expanded and customized according to the specific requirements of users.
Especially when combined with other equipment such as a Column & Boom system, this positioner can serve as a critical component that enhances the functionality of the entire system.
STANDARD FEATURES
• Control pendant with a 5-meter cable.
• Digital speed indicator on the control unit to monitor rotation.
• Table rotation speed control.
• Dual foot pedal for left-right rotation.
• Machined table with M16 T-type slots.
• Adjustable drive speed.
• AC drive system for rotation movement.
OPTIONAL FEATURES
• 3-jaw clamping chuck system.
• 7” touchscreen.
• Wireless remote control.
• High-precision reducer with servo motor (backlash-free).
• Hydraulic clamping systems.
• Additional slots on the table.
• Custom-designed tables according to requirements.

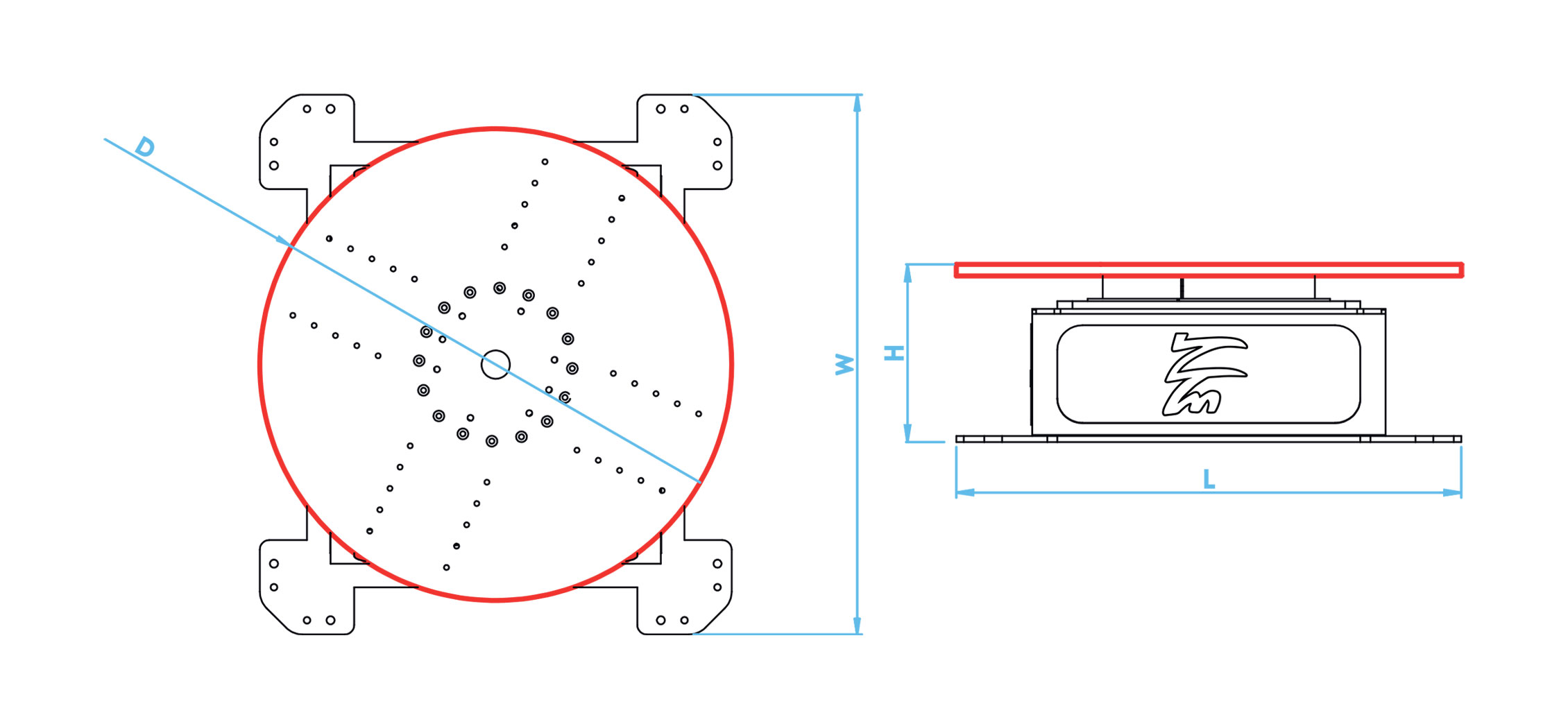

| MODEL | TTMDT-1 | TTMDT-3 | TTMDT-5 | TTMDT-10 | TTMDT-20 |
| Load Capacity (kg) | 1,000 | 3,000 | 5,000 | 10,000 | 20,000 |
| Table Rotation Capacity (kg) | 1,000 | 3,000 | 5,000 | 10,000 | 20,000 |
| Eccentricity (mm) | 150 | 150 | 150 | 150 | 150 |
| Center of Gravity (mm) | 150 | 150 | 150 | 150 | 150 |
| Rotation Speed (rpm) | 0,15 - 1,5 | 0,1 - 1 | 0,08 - 0,8 | 0,075 - 0,75 | 0,05 - 0,5 |
| Table Diameter (mm) | 1150 | 1250 | 1350 | 1650 | 1850 |
| Table Shape | Circular | Circular | Circular | Circular | Circular |
| Welding Current (A) | 400 | 600 | 600 | 600 | 1200 |
| Input Power | 380V 3 Phase 50Hz | 380V 3 Phase 50Hz | 380V 3 Phase 50Hz | 380V 3 Phase 50Hz | 380V 3 Phase 50Hz |
| Total Width (mm) | 1150 | 1250 | 1350 | 1650 | 1850 |
| Total Height (mm) | 550 | 550 | 550 | 650 | 650 |
| Total Length (mm) | 1150 | 1250 | 1350 | 1650 | 1850 |
| Weight (kg) | 500 | 700 | 900 | 1350 | 1500 |
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
