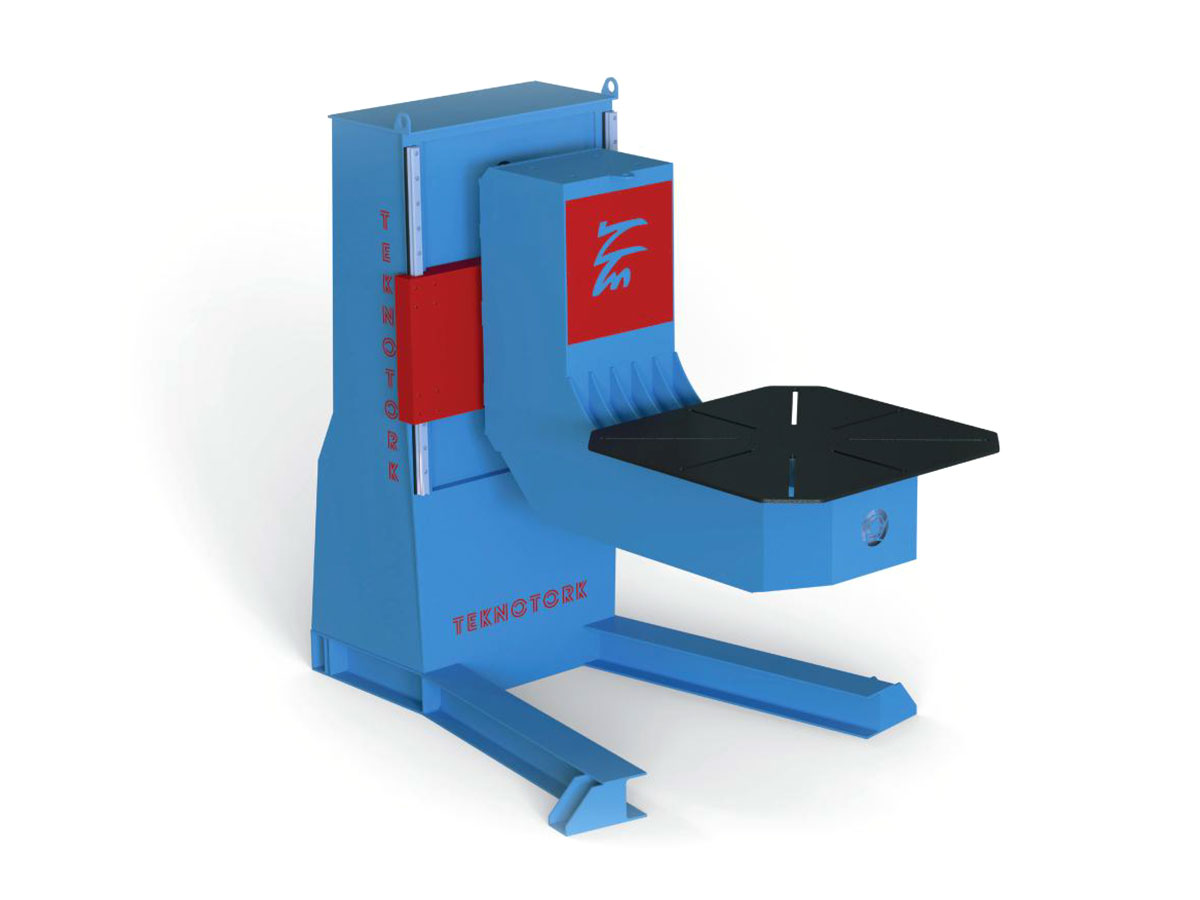

The L-Type Positioner provides easy positioning for welding, assembly, and handling operations. With its three-axis adjustable movement capability and adjustable speed options, it offers efficient and precise operation.
L-Type Positioner
L-type welding positioners are designed to provide optimum positioning for a wide range of applications such as welding, handling, and assembly. Positioning can be performed on three independent axes.
Using electric drives, the tilt axes of the L-shaped arm and the horizontal axis of the table can be adjusted clockwise and counterclockwise on a radial bearing. An electrically driven ball screw is used to lift the L-shaped arm, while hydraulic systems are preferred for heavier models.
Standard Features
• 5 m wired pendant control unit.
• Digital speed indicator on the pendant control to monitor rotation speed.
• Table rotation speed control.
• Dual foot pedal for left-right rotation.
• Machined table with M16 T-type slots.
• Adjustable drive speed.
• AC drive for rotation.
Optional Features
• 3-jaw chuck clamp.
• 7-inch touchscreen.
• Wireless remote control.
• Zero-backlash high precision reducer with servo motor.
• Clamping chuck.
• Additional slots on the table.
• Custom-designed tables according to requirements.

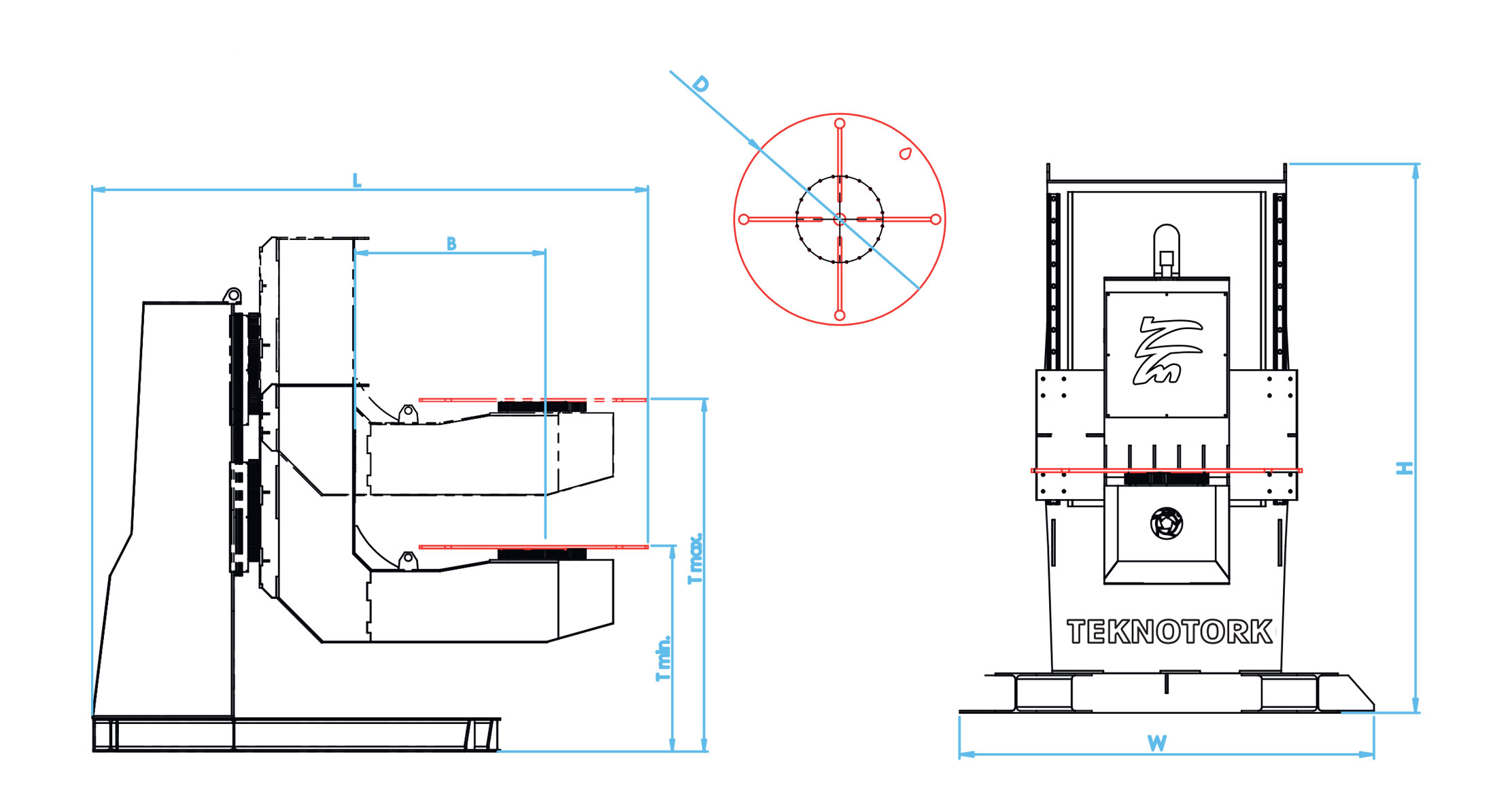

| MODEL | TTMLPOZ-1 | TTMLPOZ-3 | TTMLPOZ-5 |
| Load Capacity (kg) | 1,000 | 3,000 | 5,000 |
| Table Tilt / Rotation Capacity (kg) | 1,000 | 3,000 | 5,000 |
| Eccentricity (mm) | 150 | 150 | 150 |
| Center of Gravity (mm) | 150 | 150 | 150 |
| Table Size (mm) | D = 850 | D = 1,000 | D = 1,150 |
| Min. Table Height (mm) | Tmin = 850 | Tmin = 1,100 | Tmin = 1,100 |
| Max. Table Height (mm) | Tmax = 1,850 | Tmax = 2,250 | Tmax = 2,300 |
| Working Radius (mm) | 1,300 | 1,600 | 1,700 |
| Table Rotation Speed (rpm) | 0,15 - 1,5 | 0,1 - 1 | 0,08 - 0,8 |
| Tilt Speed (rpm) | 0,2 - 1,4 | 0,2 - 1 | 0,15 - 0,78 |
| Lifting Speed (mm/min) | 1,000 | 90 | 650 |
| Welding Current (A) | 250 | 500 | 500 |
| Input Power | 380V 3F 50Hz | 380V 3F 50Hz | 380V 3F 50Hz |
| Total Width (mm) | 1,400 | 1,500 | 1,750 |
| Total Height (mm) | 2,550 | 3,000 | 3,550 |
| Total Length (mm) | 2,900 | 3,150 | 3,650 |
| Weight (kg) | 2,500 | 2,800 | 3,200 |
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
