The Chassis Welding Machine is designed especially for longitudinal seam welding of irregular beams and features dual welding heads and high-precision automation capabilities. It ensures high efficiency and quality with automatic control systems and hydraulic supports.
Chassis Welding Machine

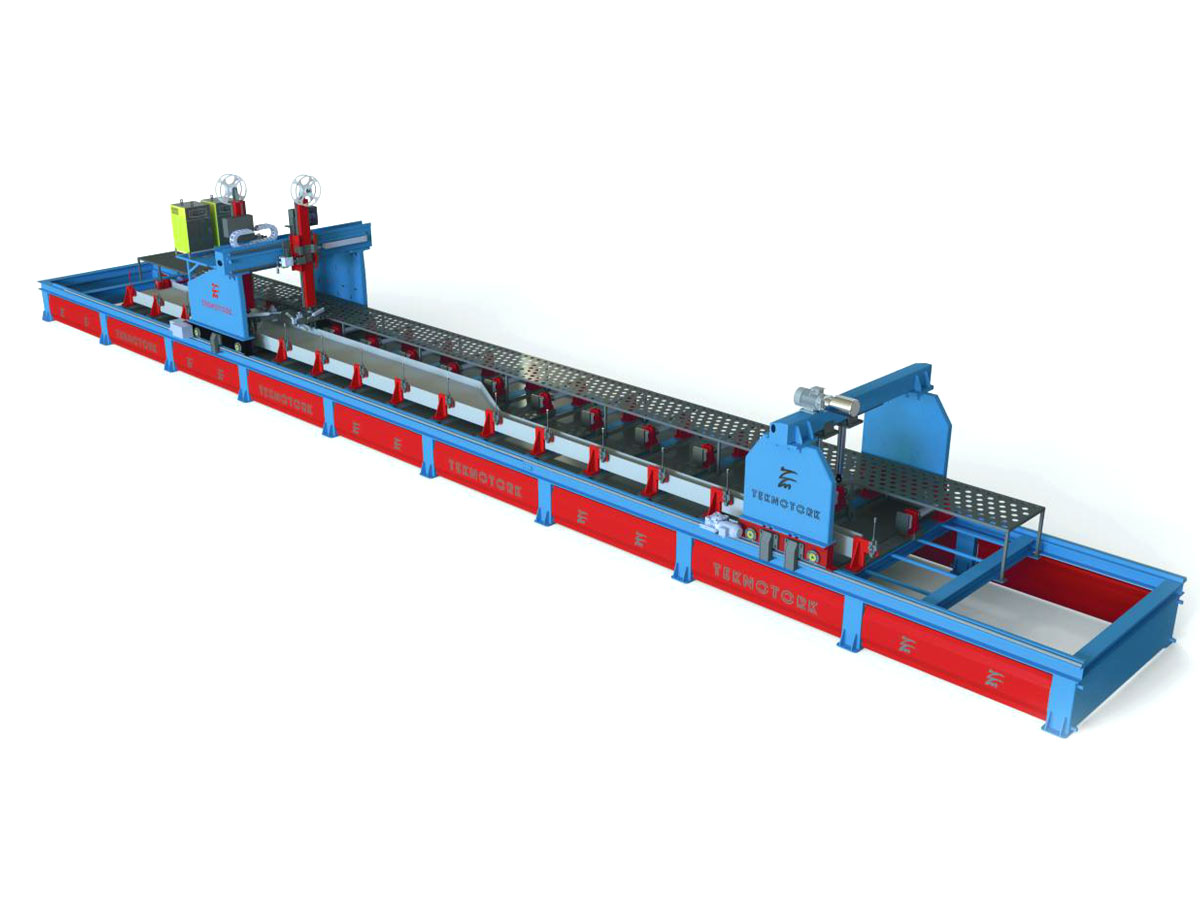

The Gantry Welding Machine is used for longitudinal seam welding and operates with dual welding heads simultaneously. It is particularly useful for welding irregular beams. This machine is widely used in the vehicle industry and in the production of H-shaped steel structures and overhead cranes.
The gantry welding machine uses advanced PLC programming technology that can control the welding length and the speed of the dual torches. The pneumatically controlled roller tracking system enables the torches to weld beams tilted up to 30 degrees horizontally without operator intervention. In addition, it features an assembly table with hydraulic cylinders to prevent damage caused by high temperatures during welding.
It also includes a Tack Welding Bridge with two hydraulic cylinders for optimal assembly before welding. This system provides stable welding quality, ease of use, and high-efficiency serial production.
Standard Features
• 7” touchscreen.
• Advanced PLC program.
• Hydraulic cylinders to prevent damage and bending caused by high temperatures.
• Tack welding gantry.
• High-precision linear guides ensuring smooth movement of all axes.
• Visual seam tracking system with rollers.
• Automatic torch and gantry retraction.
• All programs can be saved in memory for immediate recall when needed.
• Standard cable carrier protecting hoses and cables.
Optional Features
• Laser seam tracking system.
• Additional assembly table that accelerates serial production by allowing loading and tack welding on the first beam while seam welding is performed on the second beam.
• Flux recirculation system.
• Monitoring system with camera and 15” screen.

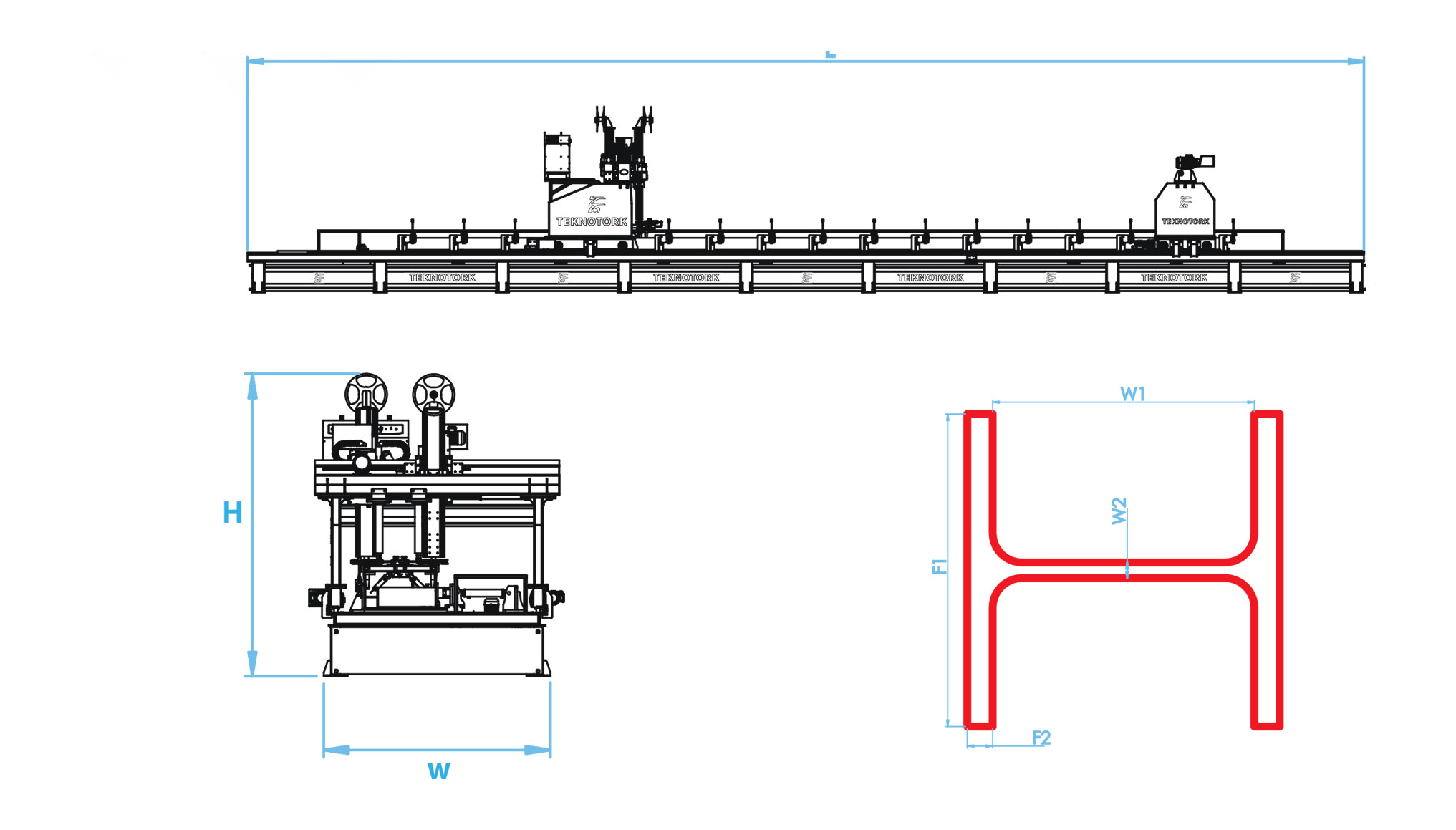

| MODEL | TTMSKM-14 |
|---|---|
| Beam Length (mm) | 14 000 |
| Flange Height (mm) (F1) | 120-350 |
| Web Width (mm) (W1) | 200-800 |
| Web Thickness (mm) (W2) | 5-20 |
| Flange Thickness (mm) (F2) | 5-30 |
| Hydraulic Cylinders for Assembly | 14 pcs |
| Press Type | Hydraulic |
| Overall Width (mm) (W) | 2250 |
| Overall Height (mm) (H) | 3000 |
| Overall Length (mm) (L) | 17 500 |
| Weight (kg) | 9 000 |
* Capacities and dimensions can be customized according to customer requirements.
* All products, specifications and data may be changed without prior notice in order to improve reliability, functionality or design.
